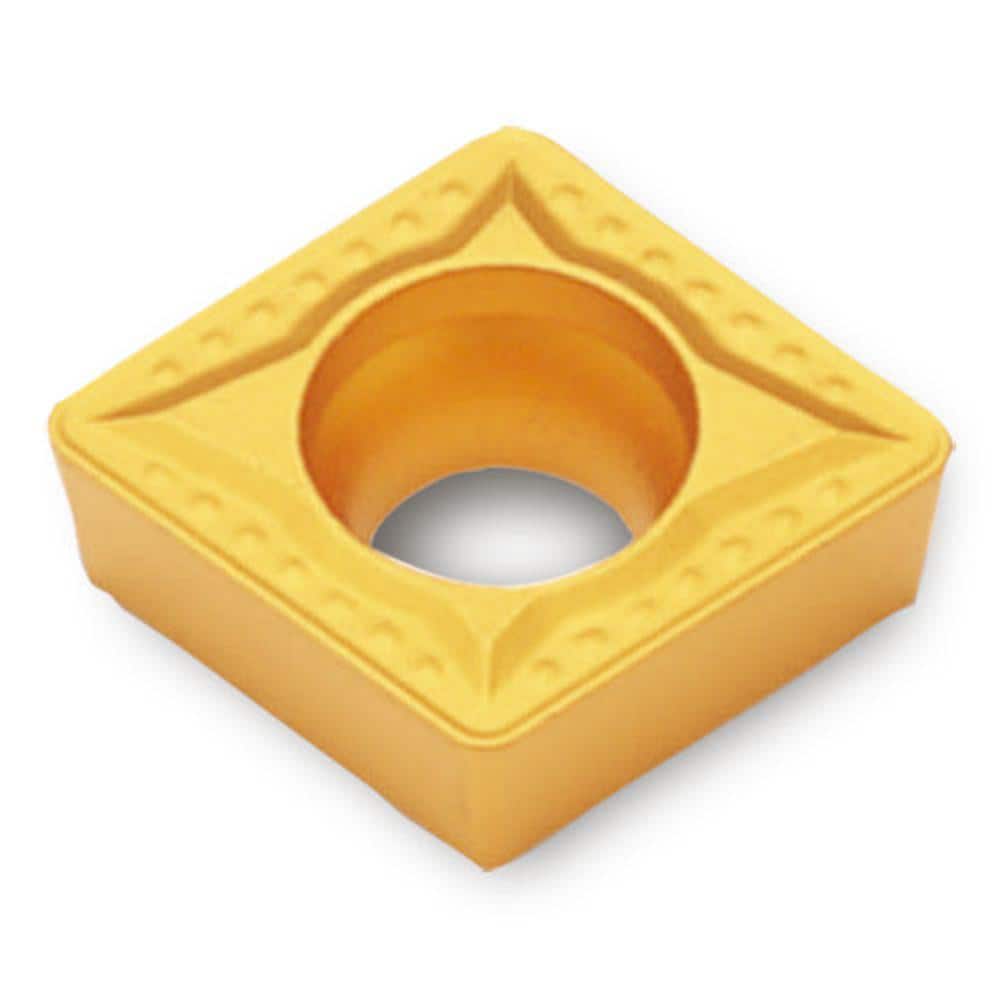

Turning Insert: CCMT21.52MT TT5100, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.2540″ Long, 1/4″ Inscribed Circle, 0.0310″ Corner Radius, 80.0 ° N/A Diamond, Series CCMT
Item #: 70061841
Brand: Ingersoll Cutting Tools
Model #: 5515098
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 21.52 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT5100 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCMT |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.2540 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | CCMT21.52MTTT5100 |
| Iso Code | CCMT060208MT TT5100 |
| Chip Breaker | MT |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Coating/Finish | TiCN; TiN; Al2O3 |
