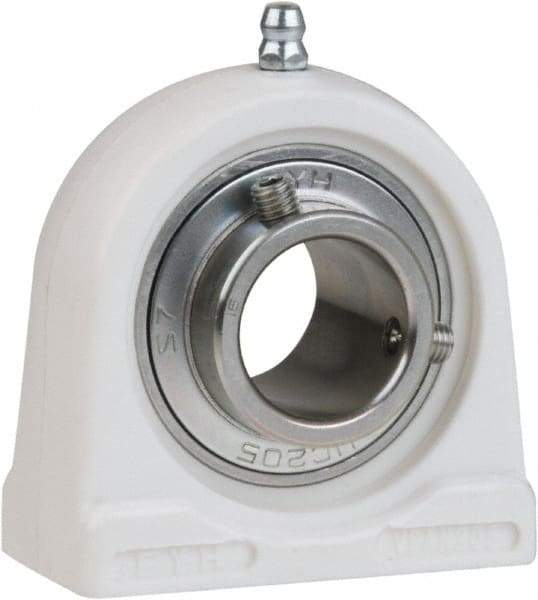

Value Collection - 1" ID, 2-25/32" OAL x 2-25/32" OAH Tapped Base - 1,764 Lb Static Cap, 3,147 Lb Dyn Cap, 2" Btw Mnt Hole Ctrs, 1-7/16" Base-to-Ctr Ht, Thermoplastic
Item #: 69972982
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Tapped Base |
| Inside Diameter (Decimal Inch) | 1.0000 |
| Inside Diameter (Inch) | 1 |
| Width (Decimal Inch) | 1.4375 |
| Overall Length (Inch) | 2-25/32 |
| Overall Length (Decimal Inch) | 2.7813 |
| Overall Height (Inch) | 2-25/32 |
| Overall Height (Decimal Inch) | 2.7813 |
| Static Load Capacity (Pounds) | 1764.00 |
| Dynamic Load Capacity (Pounds) | 3147 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 2.0000 |
| Distance Between Mounting Hole Centers (Inch) | 2 |
| Material | Thermoplastic Housing with Zinc Chromate Plated Bearing Insert |
| Distance Between Base And Center (Decimal Inch) | 1.4375 |
| Distance Between Base And Center (Inch) | 1-7/16 |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 3/8 |
| Bolt Size (Decimal Inch) | 0.3750 |
