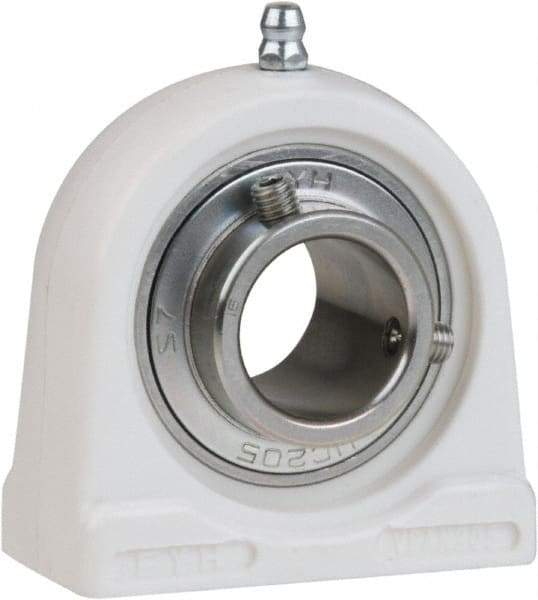

Value Collection - 1-3/16" ID, 4" OAL x 3-5/16" OAH Tapped Base - 2,540 Lb Static Cap, 4,383 Lb Dyn Cap, 3" Btw Mnt Hole Ctrs, 1-11/16" Base-to-Ctr Ht, Thermoplastic
Item #: 69972974
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Tapped Base |
| Inside Diameter (Decimal Inch) | 1.1875 |
| Inside Diameter (Inch) | 1-3/16 |
| Width (Decimal Inch) | 1.6875 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Height (Inch) | 3-5/16 |
| Overall Height (Decimal Inch) | 3.3125 |
| Static Load Capacity (Pounds) | 2540.00 |
| Dynamic Load Capacity (Pounds) | 4383 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 3.0000 |
| Distance Between Mounting Hole Centers (Inch) | 3 |
| Material | Thermoplastic Housing with Zinc Chromate Plated Bearing Insert |
| Distance Between Base And Center (Decimal Inch) | 1.6875 |
| Distance Between Base And Center (Inch) | 1-11/16 |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 7/16 |
| Bolt Size (Decimal Inch) | 0.4375 |
