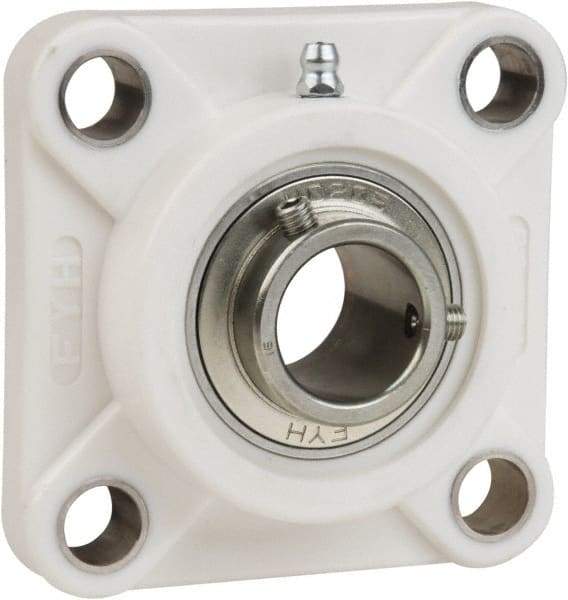

Value Collection - 3/4" ID, 3-3/8" OAL x 1-7/16" OAH 4-Bolt Flange Mounted Bearing - 1,495 Lb Static Cap, 2,877 Lb Dyn Cap, 2-1/2" Btw Mnt Hole Ctrs, 45/64" Base-to-Ctr Ht, Thermoplastic
Item #: 69972693
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4 Bolt Flange Mounted Bearing |
| Inside Diameter (Decimal Inch) | 0.7500 |
| Inside Diameter (Inch) | 3/4 |
| Width (Inch) | 3-3/8 |
| Width (Decimal Inch) | 3.3750 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (Decimal Inch) | 3.3750 |
| Overall Height (Inch) | 1-7/16 |
| Overall Height (Decimal Inch) | 1.4375 |
| Static Load Capacity (Pounds) | 1495.00 |
| Dynamic Load Capacity (Pounds) | 2877 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 2.5000 |
| Distance Between Mounting Hole Centers (Inch) | 2-1/2 |
| Material | Thermoplastic Housing with Zinc Chromate Plated Bearing Insert |
| Distance Between Base And Center (Decimal Inch) | 0.7031 |
| Distance Between Base And Center (Inch) | 45/64 |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 3/8 |
| Bolt Size (Decimal Inch) | 0.3750 |
