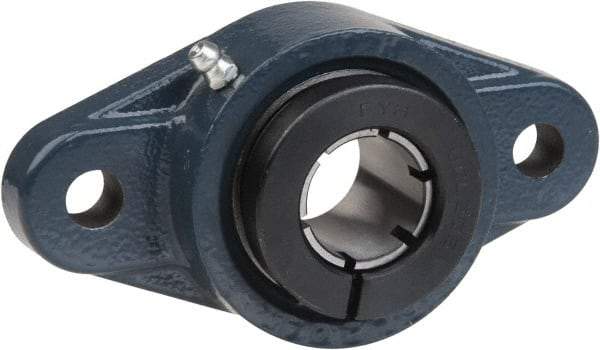

Value Collection - 1-1/2" ID, 6-7/8" OAL x 2-3/32" OAH 2-Bolt Flange - 4,001 Lb Static Cap, 6,541 Lb Dyn Cap, 5-21/32" Btw Mnt Hole Ctrs, 53/64" Base-to-Ctr Ht, Cast Iron
Item #: 69962678
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2-Bolt Flange |
| Inside Diameter (Decimal Inch) | 1.5000 |
| Inside Diameter (Inch) | 1-1/2 |
| Width (Inch) | 3-15/16 |
| Width (Decimal Inch) | 3.9375 |
| Overall Length (Inch) | 6-7/8 |
| Overall Length (Decimal Inch) | 6.8750 |
| Overall Height (Inch) | 2-3/32 |
| Overall Height (Decimal Inch) | 2.0938 |
| Static Load Capacity (Pounds) | 4001.00 |
| Dynamic Load Capacity (Pounds) | 6541 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 5.6563 |
| Distance Between Mounting Hole Centers (Inch) | 5-21/32 |
| Material | Cast Iron housing with Chrome Carbon Steel Bearings |
| Distance Between Base And Center (Decimal Inch) | 0.8281 |
| Distance Between Base And Center (Inch) | 53/64 |
| Lock Type | Concentric |
| Bolt Size (Inch) | 7/16 |
| Bolt Size (Decimal Inch) | 0.4375 |
