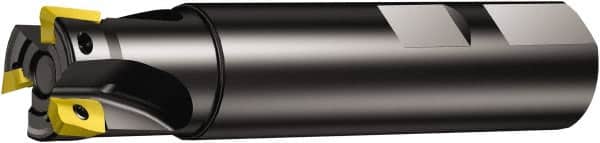

Sandvik Coromant - 1" Cut Diam, 10.01mm Max Depth of Cut, 3/4" Shank Diam, 3.501" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Through Coolant, Series CoroMill 390
Item #: 69948982
Brand: Sandvik Coromant
Model #: 5739361
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.5010 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | RA390-025M19-11L |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.4680 |
| Weldon Flat | Yes |
| Insert Compatibility | R390-11 T3 04M-PM; R390-11 T3 08E-PL; R390-11 T3 08M-PM; R390-11 T3 16E-PM; R390-11 T3 16M-KM; R390-11 T3 16M-PM |
| Shank Length (Decimal Inch) | 2.0320 |
| Maximum RPM | 36100 |
| Toolholder Material | Steel |
