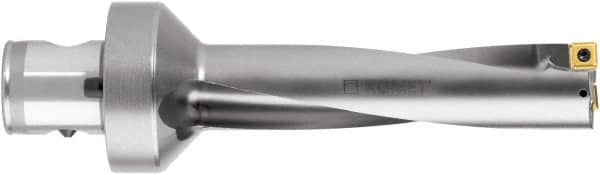

Komet - 125mm Max Drill Depth, 5xD, 24.5mm Diam, Indexable Insert Drill - 2 Inserts, ABS 50 Modular Connection Shank
Item #: 69754364
Brand: Komet
Model #: U4552450
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U45 |
| Drill Diameter (mm) | 24.50 |
| Drill Diameter (Decimal Inch) | 0.9646 |
| Maximum Drill Depth (mm) | 125.00 |
| Maximum Drill Depth (Decimal Inch) | 4.9213 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Diameter (mm) | 25.00 |
| Overall Length/Projection (mm) | 158.00 |
| Overall Length/Projection (Decimal Inch) | 6.2205 |
| Insert Compatibility | SOGX 080308 |
| Body Length (Decimal Inch) | 6.2205 |
| Body Length (mm) | 158.00 |
| Series | KUB Pentron |
