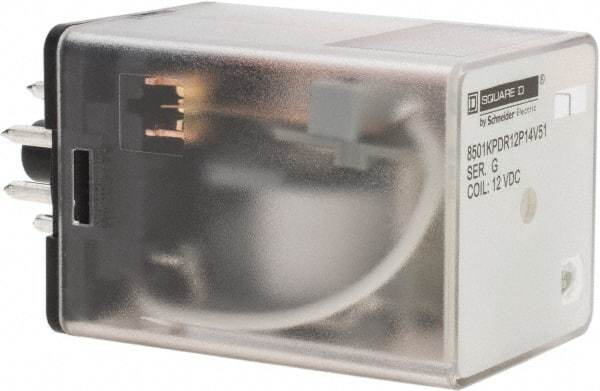

Square D - 8 Pins, 1 hp at 277 Volt & 1/3 hp at 120 Volt, 3 VA Power Rating, Octal Electromechanical Plug-in General Purpose Relay - 10 Amp at 250 VAC, DPDT, 12 VDC, 34.9mm Wide x 50.3mm High x 35.4mm Deep
Item #: 69683068
Brand: Square D
Model #: 501KPDR12P14V51
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Relay Form | Electromechanical |
| Coil Voltage | 12 VDC |
| Terminal Type | Plug-in |
| Contact Form | DPDT |
| Amperage | 10 @ 250 VAC |
| Maximum Power Rating (W) | 1.40 |
| Maximum Power Rating (VA) | 3 |
| Horsepower (HP) | 1 @ 277 V; 1/3 @ 120 V |
| Number of Pins | 8 |
| Base Shape | Octal |
| Overall Height (mm) | 50.30 |
| Overall Height (Decimal Inch) | 2.1000 |
| Overall Width (mm) | 34.90 |
| Overall Width (Decimal Inch) | 1.4000 |
| Overall Depth (mm) | 35.40 |
| Overall Depth (Decimal Inch) | 1.4000 |
| Standards Met | CE; CSA; CSA 22.2 No. 14; cURus File E66924 CNN SWIV2, SWIV8; IEC 61984; RoHS Compliant; UL 508; UL Recognized |
