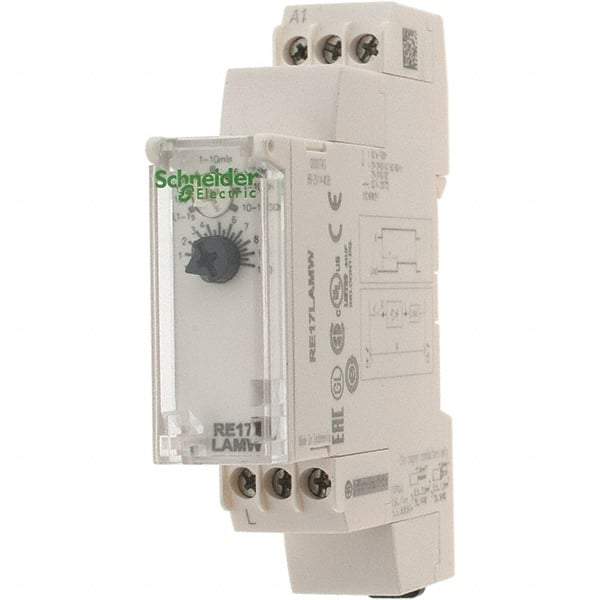

Schneider Electric - 100 hr Delay, Multiple Range SPST Time Delay Relay - 0.7 Contact Amp, 24 to 240 VAC/VDC, Selector Switch
Item #: 69679991
Brand: Schneider Electric
Model #: RE17LAMW
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Timer Function | Power On Delay |
| Number of Timing Ranges | Multiple |
| Maximum Delay (Hours) | 100 |
| Minimum Delay (sec.) | 0.1000 |
| Timer Adjustment Method | Selector Switch |
| Contact Form | SPST |
| Coil Voltage | 24-240 VAC; 24-240 VDC |
| Contact Amperage | 0.70 |
| Frequency Rating (Hz) | 50/60 |
| Mounting Type | DIN Rail Mount |
| Standards Met | 2004/108/EC; 2006/95/EC; CE IEC 61812-1; CSA File:248382 Class:3211-06; cULus Listed File:E173076 CCN:NRNT, NRNT7; EC 61812-1; EN 61000-6-1; EN 61000-6-2; EN 61000-6-3; EN 61000-6-4; GL; RoHS Compliant |
