Schneider Electric - 1,500 VA Power Rating, Electromechanical Spring General Purpose Relay - 6 Amp at 110 V, SPDT, 110 VAC/VDC, 6.2mm Wide x 78.7mm High x 103mm Deep - Americas Industrial Supply

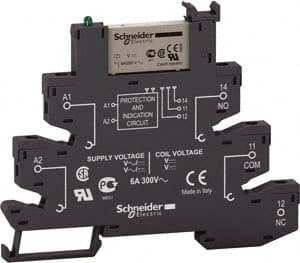

Schneider Electric - 1,500 VA Power Rating, Electromechanical Spring General Purpose Relay - 6 Amp at 110 V, SPDT, 110 VAC/VDC, 6.2mm Wide x 78.7mm High x 103mm Deep


Item #: 69679751
Brand: Schneider Electric
Model #: RSL1PRFU
Exact Tooling IR#: 04

Product Specifications
Relay Form Electromechanical
Coil Voltage 110 VAC/VDC
Terminal Type Spring
Contact Form SPDT
Amperage 6 @ 110 V
Maximum Power Rating (VA) 1500
Overall Height (mm) 78.70
Overall Height (Decimal Inch) 3.1000
Overall Width (mm) 6.20
Overall Width (Decimal Inch) 0.2400
Overall Depth (mm) 103
Overall Depth (Decimal Inch) 4.0600
Standards Met CE IEC 61810-1; CE IEC 61984; CSA C22.2 No. 14; CSA File 240278 Class 3211 04; CSA File 254977 Class 3211 07; cULus Recognized File E172326 CCNSWIV2, SWIV8; cULus Recognized File E173076 CCN NRNT2, NRNT8; GOST; RoHS Compliant; UL 508
$24.48

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
