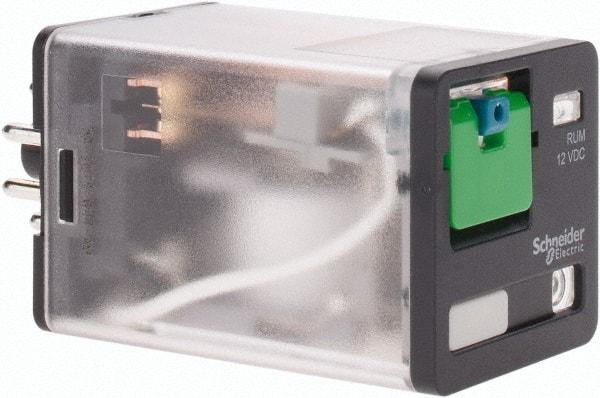

Schneider Electric - Octal Electromechanical Plug-in General Purpose Relay - 10 Amp at 240 V, DPDT, 12 VDC, 35mm Wide x 56mm High x 35.4mm Deep
Item #: 69679629
Brand: Schneider Electric
Model #: RUMC22JD
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Relay Form | Electromechanical |
| Coil Voltage | 12 VDC |
| Terminal Type | Plug-in |
| Contact Form | DPDT |
| Amperage | 10 @ 240 V |
| Maximum Power Rating (W) | 1.40 |
| Base Shape | Octal |
| Overall Height (mm) | 56 |
| Overall Height (Decimal Inch) | 2.2000 |
| Overall Width (mm) | 35 |
| Overall Width (Decimal Inch) | 1.3700 |
| Overall Depth (mm) | 35.40 |
| Overall Depth (Decimal Inch) | 1.3900 |
| Standards Met | CSA; CSA C22.2 No. 14; EAC; EN/IEC 61810-1; REACH; RoHS Compliant; UL 508; UL Recognized |
