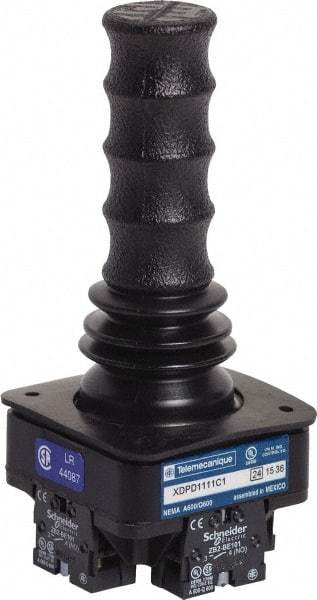

Schneider Electric - 2/4 Position, 10 Amp, 4.44 Inch Long, -40 to 140°F, Pushbutton Handle, Momentary (MO) Joystick Switch - 6.252 Inch High x 2.56 Inch Deep x 2.56 Inch Wide, 15 VDC, Panel Mount, IP65, 1.88 Inch Mount Hole Diameter
Item #: 69676716
Brand: Schneider Electric
Model #: XDPD1111C1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Switch Type | Switch |
| Mounting Hole Diameter (mm) | 48 |
| Mounting Hole Diameter (Decimal Inch) | 1.8800 |
| Operation Type | Momentary (MO) |
| Number of Operator Positions | 2/4 |
| Joystick Handle Shape | Pushbutton |
| Terminal Type | Quick Connect |
| Amperage | 10 |
| Voltage | 15 VDC |
| Mounting Type | Panel Mount |
| NEMA Rating | 4 |
| Ingress Protection Rating | IP65 |
| Bezel Material | Nylon |
| Maximum Operating Temperature (F) | 140 |
| Minimum Operating Temperature (F) | -40 |
| Actuator Length (mm) | 112.78 |
| Actuator Length (Decimal Inch) | 4.4400 |
| Overall Width (mm) | 65 |
| Overall Width (Decimal Inch) | 2.5600 |
| Overall Height (mm) | 158.60 |
| Overall Height (Decimal Inch) | 6.2520 |
| Overall Depth (mm) | 65 |
| Overall Depth (Decimal Inch) | 2.5600 |
| Standards Met | CSA Class 3211 03 File LR 44087; UL File E164353 CCN NKCR |
