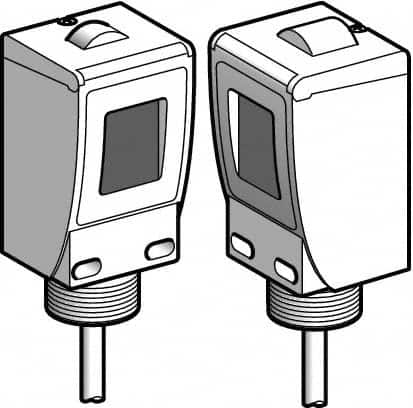

Telemecanique Sensors - Cable Connector, 60m Nominal Distance, Shock and Vibration Resistant, Through Beam Photoelectric Sensor - 24 to 240 VAC, 24 to 240 VDC, 20 Hz, Plastic, 44mm Long x 45mm Wide x 99mm High
Item #: 69676450
Brand: Telemecanique Sensors
Model #: XUC2ARCTL2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Through-beam |
| Output Circuit Type | NPN; PNP |
| Maximum Nominal Sensing Distance (Meters) | 60.00 |
| Connector Type | Cable |
| Operation Mode | Dark-on; Light-on |
| Voltage | 24-240 VAC; 24-240 VDC |
| Frequency Rating (Hz) | 20 |
| NEMA Rating | 3; 4; 6; 12; 13; 4X; 6P |
| Ingress Protection Rating | IP67 |
| Housing Material | Plastic |
| Mounting Type | Surface Mount |
| Cable Length (Meters) | 2 |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 44 |
| Overall Width/Diameter (mm) | 45 |
| Overall Height (mm) | 99 |
| Shape | Rectangular |
| Maximum Operating Temperature (F) | 131 |
| Minimum Operating Temperature (F) | -13 |
| Includes | Receiver; Transmitter |
| Standards Met | CE; CSA Certified; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; RoHS Compliant; UL Listed |
