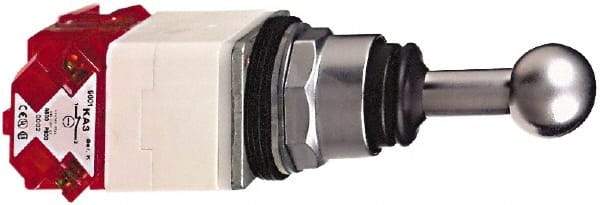

Schneider Electric - 3 Position, 10 Amp, 80mm Long, -13 to 158°F, Octagonal Handle, Momentary (MO) Joystick Controller Switch - 600 VAC, IP66, 30mm Mount Hole Diameter, 2NO
Item #: 69672970
Brand: Schneider Electric
Model #: 9001K71H7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Switch Type | Controller |
| Mounting Hole Diameter (mm) | 30 |
| Operation Type | Momentary (MO) |
| Contact Configuration | 2NO |
| Number of Operator Positions | 3 |
| Joystick Handle Shape | Octagonal |
| Terminal Type | Screw Clamp |
| Amperage | 10 |
| Voltage | 600 VAC |
| NEMA Rating | 1; 2; 3; 4; 12; 13; 3R |
| Ingress Protection Rating | IP66 |
| Contact Plating | Silver Alloy |
| Bezel Material | Chrome |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Actuator Length (mm) | 80 |
| Standards Met | CSA C22.2 No. 14; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; JIS C 4520; JIS C 852; RoHS Compliant; UL 508 |
