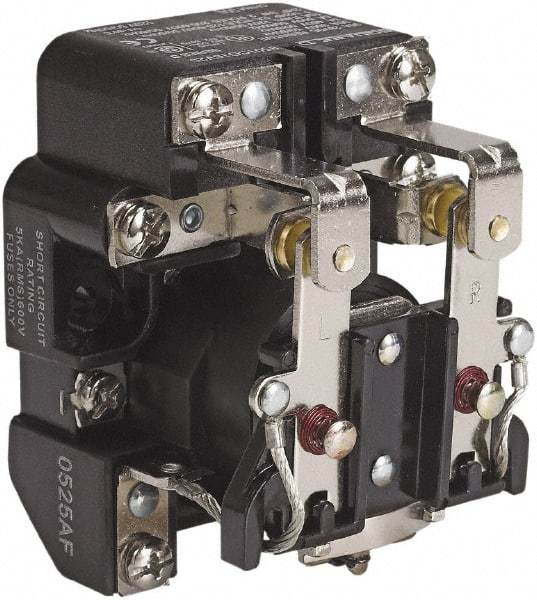

Square D - 1-1/2 hp, 10 VA Power Rating, Electromechanical Screw Clamp General Purpose Relay - 40 at 277 VAC & 5 at 600 V, DPDT, 24 VDC, 63.6mm Wide x 58.8mm High x 79.4mm Deep
Item #: 69672590
Brand: Square D
Model #: 8501CDO16V53
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Relay Form | Electromechanical |
| Coil Voltage | 24 VDC |
| Terminal Type | Screw Clamp |
| Contact Form | DPDT |
| Amperage | 40 @ 277 VAC; 5 @ 600 V |
| Maximum Power Rating (W) | 4 |
| Maximum Power Rating (VA) | 10 |
| Horsepower (HP) | 1-1/2 |
| Overall Height (mm) | 58.80 |
| Overall Height (Decimal Inch) | 2.3100 |
| Overall Width (mm) | 63.60 |
| Overall Width (Decimal Inch) | 2-1/2 |
| Overall Depth (mm) | 79.40 |
| Overall Depth (Decimal Inch) | 3.1300 |
| Standards Met | CSA File 218139 Class 3211 04; IEC 60947-4-1; RoHS Compliant; UL Listed File E78351 |
