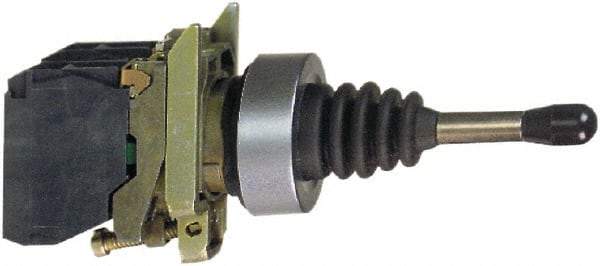

Schneider Electric - 5 Position, Multiple Amp Level, 54mm Long, -13 to 158°F, Round Handle, Momentary (MO) Joystick Controller Switch - IP66, 22mm Mount Hole Diameter
Item #: 69671592
Brand: Schneider Electric
Model #: XD4PA24
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Switch Type | Controller |
| Mounting Hole Diameter (mm) | 22 |
| Operation Type | Momentary (MO) |
| Contact Configuration | NO |
| Number of Operator Positions | 5 |
| Joystick Handle Shape | Round |
| Terminal Type | Screw |
| Amperage | 0.10; 0.22; 0.10 @ 250 VDC; 0.22 @ 125 VDC |
| NEMA Rating | 13; 4X |
| Ingress Protection Rating | IP66 |
| Contact Plating | Silver Alloy |
| Bezel Material | Metal |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Actuator Length (mm) | 54 |
| Standards Met | Bureau Veritas; CSA; CSA C22.2 No. 14; DNV; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; EN/IEC 60947-5-5; GL; JIS C 4520; LROS; RINA; UL 508; UL Listed |
