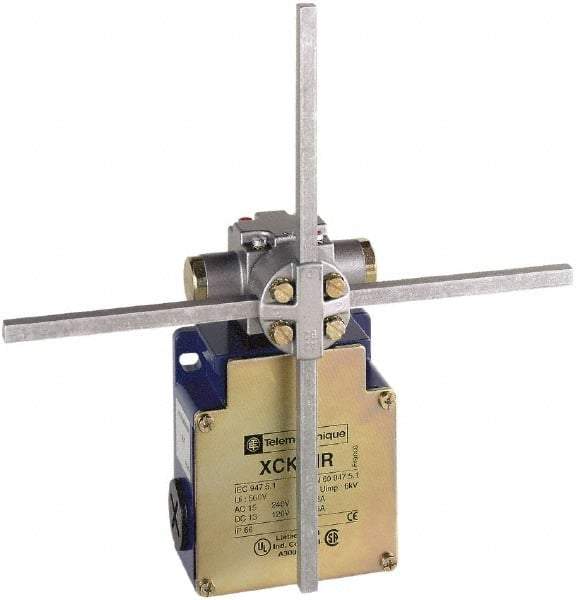

Telemecanique Sensors - 4P, 2NC, 240 VAC, Screw Terminal, Rotary Spring Return Actuator, General Purpose Limit Switch - IP66 IPR Rating
Item #: 69670149
Brand: Telemecanique Sensors
Model #: XCKMR54D1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Rotary Spring Return |
| Voltage | 240 VAC |
| Contact Form | 4P |
| Contact Configuration | 2NC |
| Terminal Type | Screw Terminal |
| Connection Type | Pg13 |
| Actuator Location | Side |
| Material | Zamak |
| Amperage | 10 |
| Actuator Length (Decimal Inch) | 5 |
| Ingress Protection Rating | IP66 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Overall Width (mm) | 200 |
| Overall Depth (mm) | 59 |
| Standards Met | CSA C22.2 No. 14; EN/IEC 60529; EN/IEC 60947-5-1; UL 508 |
