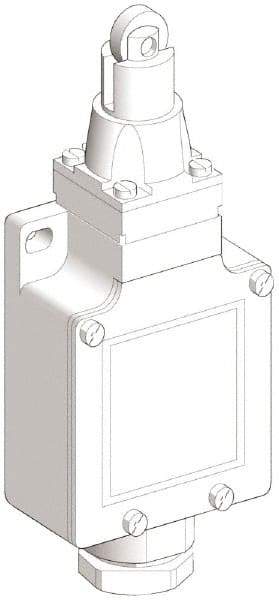

Telemecanique Sensors - DP, NC/NO, 240 VAC, Screw Terminal, Roller Plunger Actuator, General Purpose Limit Switch - IP66 IPR Rating
Item #: 69670131
Brand: Telemecanique Sensors
Model #: XCKL102
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Roller Plunger |
| Voltage | 240 VAC |
| Contact Form | DP |
| Contact Configuration | NC/NO |
| Terminal Type | Screw Terminal |
| Connection Type | Pg13 |
| Actuator Location | Side |
| Material | Zamak |
| Amperage | 10 |
| Actuator Length (Decimal Inch) | 5 |
| Ingress Protection Rating | IP66 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Overall Width (mm) | 52 |
| Overall Depth (mm) | 30 |
| Standards Met | CSA; CSA C22.2 No. 14; EN/IEC 60204-1; EN/IEC 60947-5-1; RoHS Compliant; UL; UL 508 |
