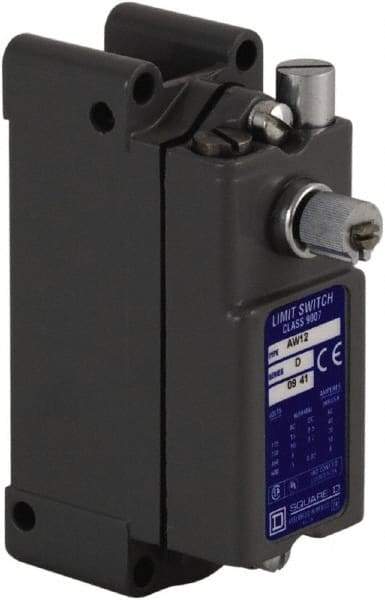

Square D - SPDT, NC/NO, 600 VAC, Screw Terminal, Rotary Head Actuator, General Purpose Limit Switch - 1, 2, 4, 12, 13 NEMA Rating, IP65 IPR Rating, Surface Mount
Item #: 69669653
Brand: Square D
Model #: 9007AW12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Rotary Head |
| Voltage | 600 VAC |
| Contact Form | SPDT |
| Contact Configuration | NC/NO |
| Terminal Type | Screw Terminal |
| Mounting Type | Surface Mount |
| Actuator Location | Side |
| Material | Zinc |
| Amperage | 0.02 @ 600 VDC; 0.20 @ 250 VDC; 0.50 @ 125 VDC; 10 @ 240 VAC; 15 @ 120 VAC; 5 @ 600 VAC; 6 @ 480 VAC |
| Actuator Length (Decimal Inch) | 1.4400 |
| NEMA Rating | 1; 2; 4; 12; 13 |
| Ingress Protection Rating | IP65 |
| Travel (Degrees) | 5 |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -65 |
| Overall Width (Decimal Inch) | 2.6900 |
| Overall Depth (Decimal Inch) | 1.4400 |
| Standards Met | IEC 60529; RoHS Compliant |
