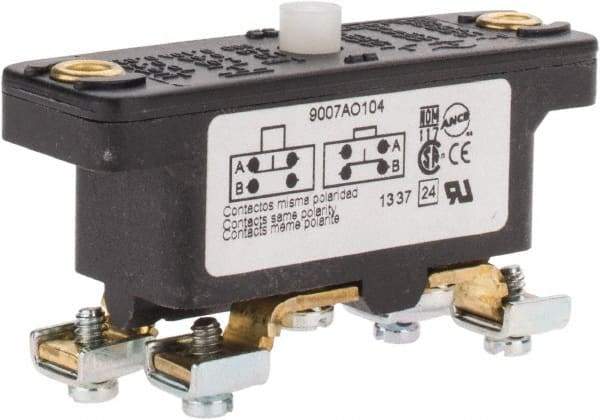

Square D - 0.25 Amp at 125 VDC, 5 Amp at 600 VAC, SPDT-DB, Basic Snap Switch - 600 V, Screw Terminal, 0.69 Lb Max Operating Force, 2-1/2 Inch High x 0.83 Inch Long x 1.03 Inch Wide, -20 to 185°F
Item #: 69669646
Brand: Square D
Model #: 9007AO104
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Switch Type | General Purpose |
| Maximum Amperage | 15 |
| Actuator Type | Basic Snap Switch |
| Contact Form | SPDT-DB |
| Contact Configuration | NO/NC |
| Terminal Type | Screw Terminal |
| Amperage at 600 VAC | 5 |
| Amperage at 125 VDC | 0.25 |
| Maximum Operating Force (Lb.) | 0.69 |
| Minimum Release Force (Lb.) | 0.44 |
| Voltage | 600 V |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -20 |
| Overall Height (Decimal Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 0.8300 |
| Overall Width (Decimal Inch) | 1.0300 |
| Contact Plating | Silver |
| Material | Zinc |
| Standards Met | IEC 60529; NEMA 1; RoHS Compliant |
