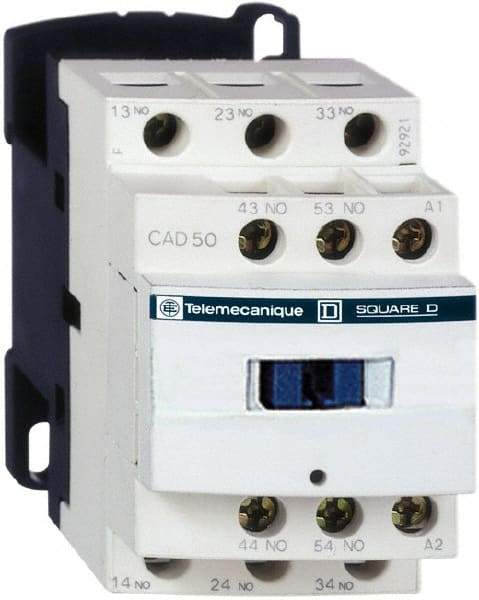

Schneider Electric - 5NO, 110 VAC at 50/60 Hz Control Relay - 17 V
Item #: 69662336
Brand: Schneider Electric
Model #: CAD50F7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Coil Voltage | 110 VAC @ 50/60 Hz |
| Contact Configuration | 5NO |
| Control Circuit Type | AC 50/60 Hz |
| Mounting Type | DIN Rail Mount |
| Terminal Type | Screw |
| Minimum Sensed Amperage (mA) | 5 |
| Minimum Sensed Voltage | 17 V |
| Ingress Protection Rating | IP2X |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -40 |
| Overall Height (mm) | 77 |
| Overall Width (mm) | 45 |
| Overall Depth (mm) | 84 |
| Standards Met | BS 4794; CSA; EN 60947-5; IEC 60068; IEC 60947-5-1; NF C 63-140; RoHS Compliant; UL Listed; VDE 0106; VDE 0660 |
