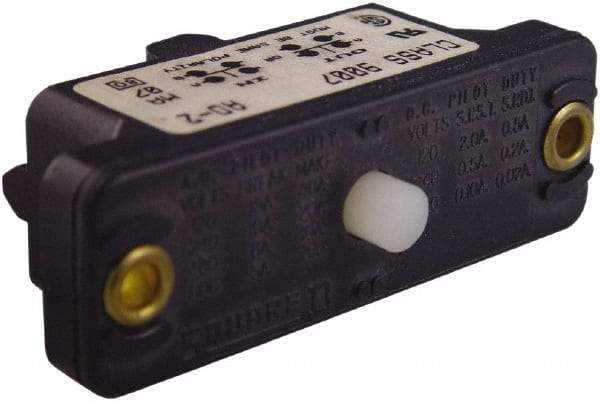

Square D - SPDT, NC/NO, 600 VAC, Screw Terminal, Plunger Actuator, General Purpose Limit Switch - 1 NEMA Rating, IP20 IPR Rating, Panel Mount, 0.69 Lb. Operating Force
Item #: 69658862
Brand: Square D
Model #: 9007AO1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Plunger |
| Voltage | 600 VAC |
| Contact Form | SPDT |
| Contact Configuration | NC/NO |
| Terminal Type | Screw Terminal |
| Mounting Type | Panel Mount |
| Actuator Location | Top |
| Material | Zinc |
| Amperage | 0.10 @ 250 VDC; 0.25 @ 125 VDC; 10 @ 240 VAC; 15 @ 120 VAC; 5 @ 600 VAC; 6 @ 480 VAC |
| Actuator Length (Decimal Inch) | 1.0300 |
| NEMA Rating | 1 |
| Ingress Protection Rating | IP20 |
| Maximum Operating Force (Lb.) | 0.69 |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -20 |
| Overall Width (Decimal Inch) | 0.8300 |
| Overall Depth (Decimal Inch) | 1.0300 |
| Standards Met | IEC 60529; RoHS Compliant |
