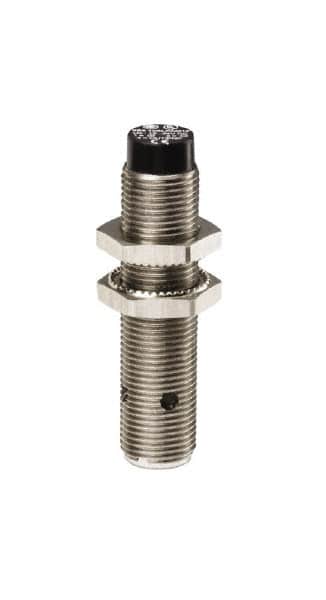

Telemecanique Sensors - PNP, 4mm Detection, Cylinder, Inductive Proximity Sensor - 3 Wires, IP67, 12 VDC, 12 VDC, 24 VDC, M12x1 Thread, 53mm Long x 12mm Wide
Item #: 69657120
Brand: Telemecanique Sensors
Model #: XS212BLPAM12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder |
| Sensor Operation Output Mode | NO |
| Output Type | PNP |
| Connector Type | 4-pin M12 |
| Number of Wires | 3 |
| Detection Distance (mm) | 4.00 |
| Sensor Head Size | M12 |
| Maximum Voltage | 24 VDC |
| Overall Width/Diameter (mm) | 12 |
| Ingress Protection Rating | IP67 |
| Maximum Load Capacity (mA) | 100 |
| Minimum Voltage | 12 VDC |
| Response Frequency (Hz) | 1000 |
| Thread Size | M12x1 |
| Housing Material | Nickel Plated Brass |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 53 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Standards Met | CE Listed; CSA Certified; IEC 60068-2-6; IEC 60068-2-7; IEC 60529; RoHS Compliant; UL Listed |
