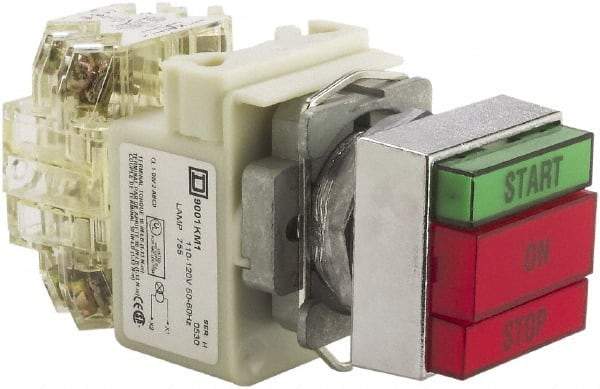

Schneider Electric - 30mm Mount Hole, Pushbutton Switch with Pilot Light - Rectangle, Green and Red Pushbutton, Illuminated, Momentary (MO), Start-On-Stop
Item #: 69653582
Brand: Schneider Electric
Model #: 9001KXRG117
Exact Tooling IR#: 04
Features and Benefits
Pushbutton switches are designed with the front side of the switch outfacing on the panel. Used in conjunction with a contact block, these switches are designed to activate machinery by button that is pressed and released. They feature a pilot light for better visibility.
Illuminated pushbuttons offer a light within the button fo added safety in darker areas.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 30 |
| Switch Type | Pushbutton Switches with Pilot Light |
| Pushbutton Shape | Rectangle |
| Pushbutton Color | Green; Red |
| Operator Illumination | Illuminated |
| Operation Type | Momentary (MO) |
| Switch Sequence | Start-On-Stop |
| Voltage | 110-120 V |
| Contact Configuration | 2NO/2NC |
| NEMA Rating | 4; 13; 4X |
| Standards Met | CE Marked; CSA Certified File No. LR25490 Class 3211 03; RoHS Compliant; UL Listed File No. E42259 CCN NKCR |
