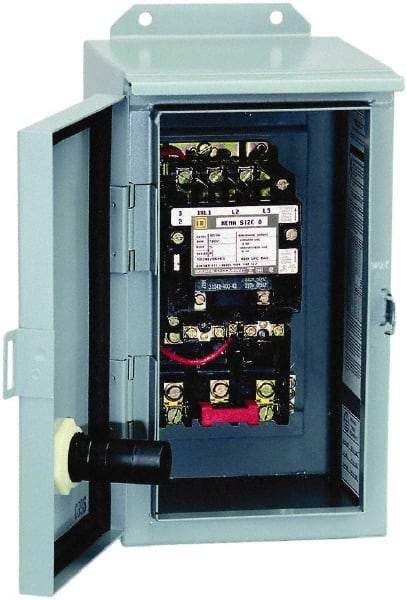

Square D - 220 Coil VAC at 50 Hz, 240 Coil VAC at 60 Hz, 45 Amp, NEMA Size 2, Nonreversible Enclosed Enclosure NEMA Motor Starter - 3 Phase hp: 10 at 200 VAC, 15 at 230 VAC, 25 at 460 VAC, 25 at 575 VAC, 12 Enclosure Rating
Item #: 69651461
Brand: Square D
Model #: 8536SDA1V03
Exact Tooling IR#: 04
Features and Benefits
Enclosed housings are designed to ensure that the motor is never disconnected from power during starting. Ideal for frictional loads and prevention of electrical shocks and dust.
Non-reversing starters are designed with one phase line that connects to and runs voltage through the motor. The starter is used to turn a motor on and off.
NEMA 12 refers to enclosures constructed (without knockouts) for indoor use. They provide a degree of protection from falling dirt, circulating dust, lint, fibers, flyings, water dripping and light splashing.
Product Specifications | |
---|---|
Amperage | 45 |
NEMA Size | 2 |
Coil Voltage | 220 VAC @ 50 Hz; 240 VAC @ 60 Hz |
Enclosure Type | Enclosed |
Action | NonReversible |
NEMA Enclosure Rating | 12 |
Horsepower at 3 Phase | 10 @ 200 VAC; 15 @ 230 VAC; 25 @ 460 VAC; 25 @ 575 VAC |
Standards Met | CSA; RoHS Compliant; UL Listed |
