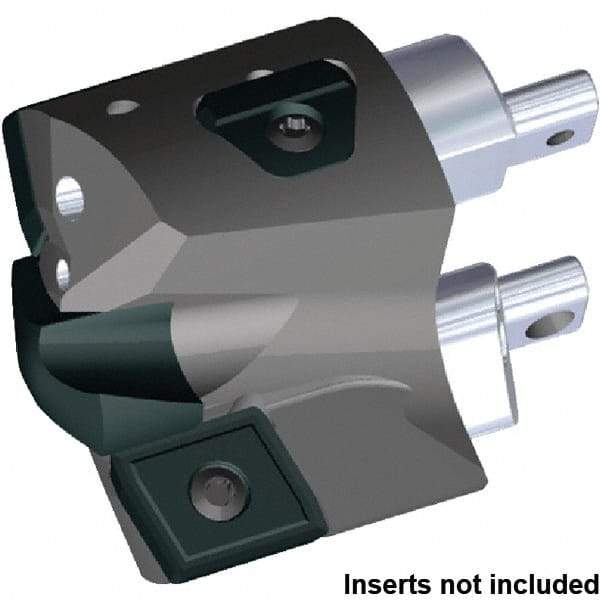

Kennametal - Series KSEM Plus, Head Connection FDS45, 46mm Max Diam Interchangeable Pilot Drill Head - KSEMP1900HPGM Pilot Drill, 19mm Pilot Drill Diam, 3 Nonpilot Inserts, 30mm Head Length
Item #: 69625176
Brand: Kennametal
Model #: 5116099
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS45 |
| Pilot Type | Interchangeable Pilot |
| Maximum Drill Diameter (mm) | 46.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.8110 |
| Pilot Drill Diameter (mm) | 19.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.7480 |
| Number of Non-Pilot Inserts | 3 |
| Pilot Drill Style | KSEMP1900HPGM |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1810 |
| Drill Head Style | B1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp; Screw |
| Overall Length (mm) | 51.54 |
| Overall Length (Decimal Inch) | 2.0290 |
| Head Length to Pilot Tip (Decimal Inch) | 1.3440 |
| Head Length to Pilot Tip (mm) | 34.14 |
