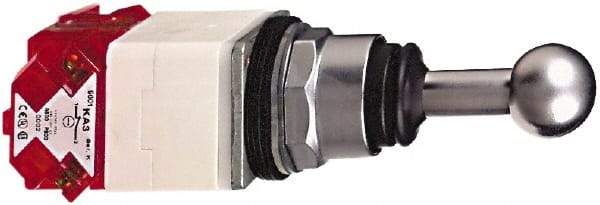

Schneider Electric - 5 Position, Multiple Amp Level, 80mm Long, -13 to 158°F, Octagonal Handle, Momentary (MO) Joystick Controller Switch - IP66, 30mm Mount Hole Diameter
Item #: 69534956
Brand: Schneider Electric
Model #: 9001K35H2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Switch Type | Controller |
| Mounting Hole Diameter (mm) | 30 |
| Operation Type | Momentary (MO) |
| Number of Operator Positions | 5 |
| Joystick Handle Shape | Octagonal |
| Terminal Type | Screw |
| Amperage | 0.55 @ 125 VDC; 3 @ 240 VAC |
| NEMA Rating | 1; 2; 3; 4; 12; 13; 3R |
| Ingress Protection Rating | IP66 |
| Contact Plating | Silver Alloy |
| Bezel Material | Metal |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Actuator Length (mm) | 80 |
| Standards Met | CSA C22.2 No. 14; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; IEC 60529; JIS C 4520; JIS C 852; NEMA; RoHS Compliant; UL 508 |
