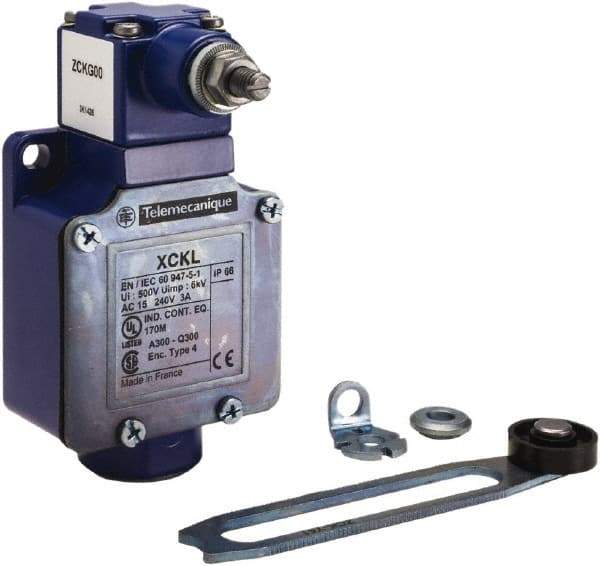

Telemecanique Sensors - SPDT, NC/NO, 300 VAC, 300 VDC, Screw Terminal, Roller Lever Actuator, General Purpose Limit Switch - 1, 2, 3, 4, 12 NEMA Rating, IP66 IPR Rating, Reversible Mount
Item #: 69533115
Brand: Telemecanique Sensors
Model #: XCKL10041H7
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Roller Lever |
| Voltage | 300 VAC; 300 VDC |
| Contact Form | SPDT |
| Contact Configuration | NC/NO |
| Terminal Type | Screw Terminal |
| Mounting Type | Reversible Mount |
| Connection Type | 1/2 NPT |
| Actuator Location | Top |
| Material | Metal |
| Amperage | 10 |
| NEMA Rating | 1; 2; 3; 4; 12 |
| Ingress Protection Rating | IP66 |
| Maximum Operating Force (oz-in) | 14.20 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Standards Met | CE; CSA File Number LR44087 Class 3211-03; UL Listed File Number E39281 CCN NKCR |
