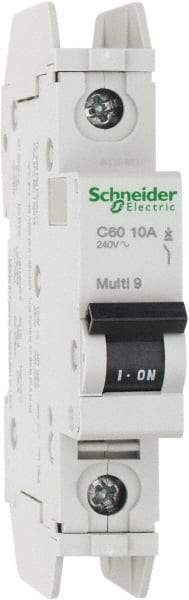

Schneider Electric - 10 Amp, 125 VDC, 240 VAC, 60 VDC, 1 Pole, DIN Rail Mount, Fixed Mount Miniature Circuit Breaker - Thermal Magnetic Trip, Multiple Breaking Capacity Ratings, 73mm Deep x 107mm High x 18mm Wide
Item #: 69528610
Brand: Schneider Electric
Model #: 60127
Exact Tooling IR#: 04
Features and Benefits
Thermal-magnetic tripping mechanisms are designed with both a bi-metal switch and an electromagnet. They perform as a thermal breaker for low level overloads and perform as a magnetic breaker for instantaneous tripping mechanism at high levels.
| Product Specifications | |
|---|---|
| Circuit Breaker Type | Miniature Circuit Breaker |
| Amperage | 10 |
| Number of Poles | 1 |
| Breaking Capacity | 10 kA @ 120 VAC; 10 kA @ 240 VAC; 5 kA @ 240 VAC |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Connection Type | Tunnel |
| Mounting Type | DIN Rail Mount; Fixed Mount |
| Voltage | 125 VDC; 240 VAC; 60 VDC |
| Durability | 20000 Cycles |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -22 |
| Overall Depth (mm) | 73 |
| Overall Height (mm) | 107 |
| Overall Width (mm) | 18 |
| Standards Met | CSA C22.2 No. 5.2; IEC 60947-2; RoHS Compliant; UL 489 |
| Reset Actuator Type | Handle |
