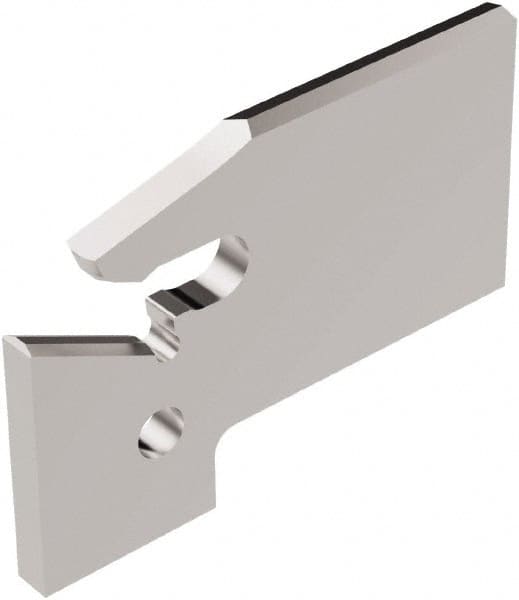

Seco - 0.61" Blade Height, 0.134" Blade Width, 1.303" OAL, Right Hand Cut, Single End Indexable Cut-Off Blade - 150.10A Blade, 150.10 Series
Item #: 69303469
Brand: Seco
Model #: 33058
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Blade Height (Decimal Inch) | 0.6100 |
| Blade Width (Decimal Inch) | 0.1340 |
| Blade Overall Length (Decimal Inch) | 1.3030 |
| Blade Style | 150.10A |
| Insert Width (Decimal Inch) | 0.1610 |
| Series | 150.10 |
| Insert Seat Size | 4 |
| Tool Block/Toolholder Style | 150.10-15 |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Inch) | 1-1/2 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5000 |
| Insert Corner Radius (Decimal Inch) | 0.0090 |
| Complete Insert Compatibility | 150.10-4.. |
| Complete Tool Block/Toolholder Style Compatibility | R/L150.10...-15 |
