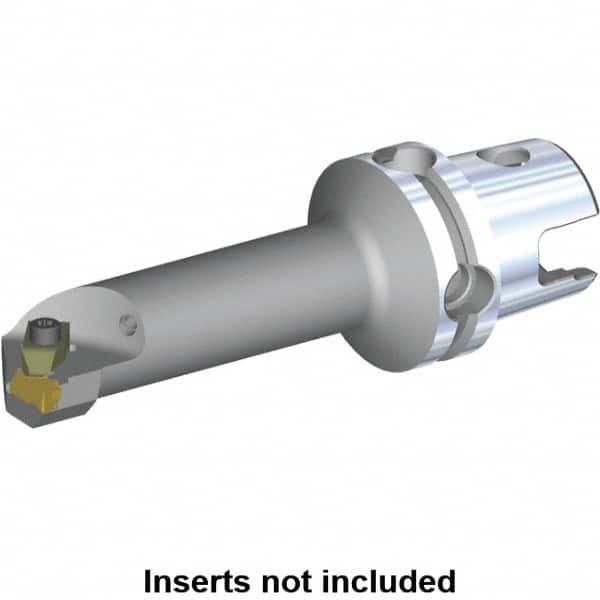

Kennametal - Insert Style NG 3L, 70mm Head Length, Right Hand Cut, Internal Modular Threading Cutting Unit Head - System Size KM40TS, 17mm Center to Cutting Edge, Series Top Notch
Item #: 69282473
Brand: Kennametal
Model #: 3955491
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM40TS |
| Series Name | Top Notch |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Head Length/Projection (mm) | 70.00 |
| Head Length/Projection (Decimal Inch) | 2.7559 |
| Insert Style | NG 3L |
| Insert Holding Method | Clamp |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 25.00 |
| Neck Diameter (Decimal Inch) | 0.9843 |
| Minimum Hole Diameter (mm) | 34.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.3386 |
| Maximum Hole Depth (mm) | 55.00 |
| Maximum Hole Depth (Decimal Inch) | 2.1654 |
