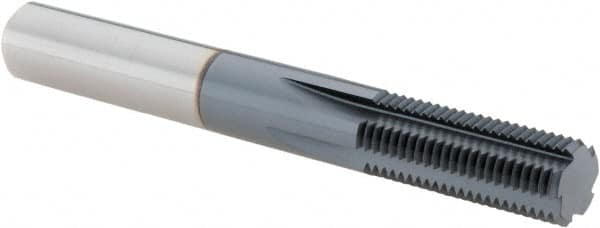

Vargus - 7/16-28 Thread, 5/16" Shank Diam, TiAlN Coating, Solid Carbide Straight Flute Thread Mill - 5 Flutes, 2.48" OAL, 7/16" Min Noml Diameter
Item #: 69266492
Brand: Vargus
Model #: 80441
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and commonly used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Threads Per Inch | 28 |
| Thread Size (Inch) | 7/16-28 |
| Minimum Nominal Diameter (Inch) | 7/16 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Shank Diameter (Inch) | 5/16 |
| Number of Flutes | 5 |
| Cutting Diameter (Decimal Inch) | 0.3100 |
| Finish/Coating | TiAlN |
| Length of Cut (Decimal Inch) | 0.7870 |
| Thread Standard | UN |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.4800 |
| Through Coolant | No |
| Material Grade | Micrograin |
