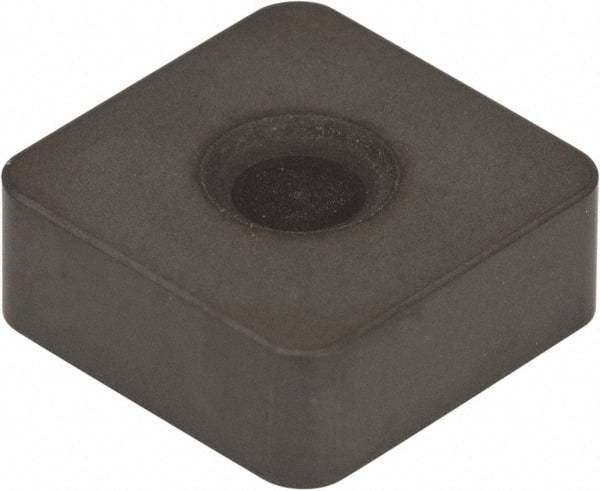

Kennametal - SNGX434 Grade KB1340 CBN Turning Insert - Uncoated, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 1/16" Corner Radius
Item #: 69261667
Brand: Kennametal
Model #: 3960812
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | SNGX |
| Insert Size | 434 |
| Material | CBN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | KB1340 |
| Coating | Uncoated |
| ISO Number | SNGX120416S02020 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | SNGX434S0820 |
| Included Angle | 90 |
| Insert Holding Method | Clamp |
| Shape | Square |
