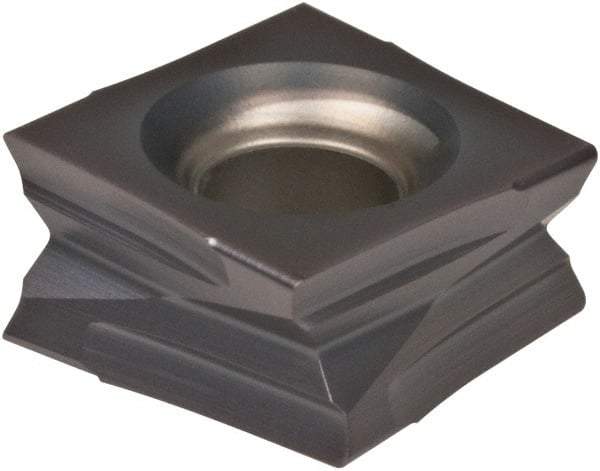

Kennametal - C8FIX1506 MP Grade KCU10 Carbide Turning Insert - AlTiN Finish, 0.287" Inscr Circle, 0.217 Thick, 0.0118" Corner Radius
Item #: 69261329
Brand: Kennametal
Model #: 4051121
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | C8FIX |
| Insert Size | 1506 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2870 |
| Thickness (Decimal Inch) | 0.2170 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | MP |
| Hole Diameter (Decimal Inch) | 0.2007 |
| ISO Number | C8FIX120503LMP |
| Manufacturers Catalog Number | C8FIX120503LMP |
| Insert Holding Method | Pin |
