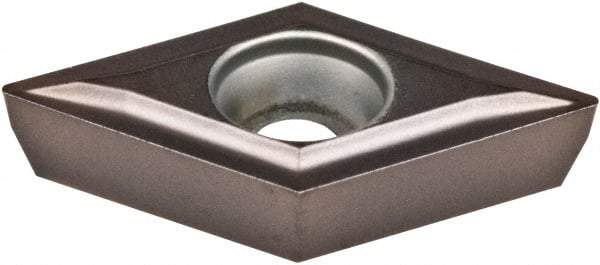

Kennametal - DPGT32.52 LF Grade KCU10 Carbide Turning Insert - AlTiN Finish, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 69258952
Brand: Kennametal
Model #: 4045282
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DPGT |
| Insert Size | 32.52 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | LF |
| Hole Diameter (Decimal Inch) | 0.8000 |
| ISO Number | DPGT11T308LF |
| Relief Angle | 11 |
| Manufacturers Catalog Number | DPGT3252LF |
| Included Angle | 55 |
| Insert Holding Method | Screw |
| Shape | Diamond |
