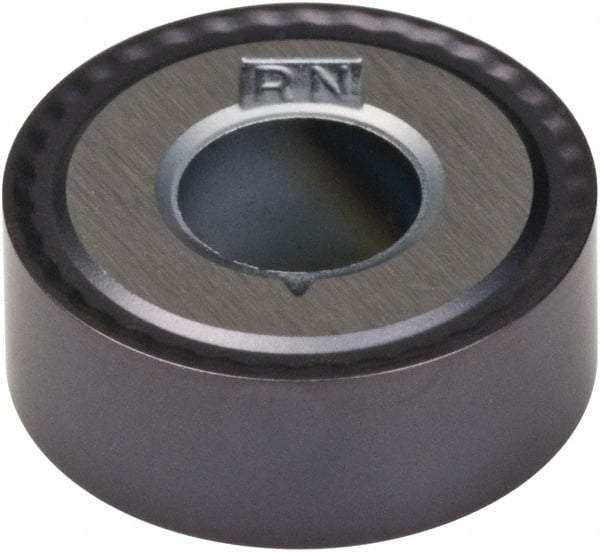

Kennametal - RNMG43 RN Grade KCU10 Carbide Turning Insert - AlTiN Finish, Round, 1/2" Inscr Circle, 3/16" Thick
Item #: 69257707
Brand: Kennametal
Model #: 4053408
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RNMG |
| Insert Size | 43 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | RN |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | RNMG120400RN |
| Relief Angle | 0 |
| Manufacturers Catalog Number | RNMG43RN |
| Primary Workpiece Material | M; S |
| Secondary Workpiece Material | P; K; N |
| Insert Holding Method | Pin & Clamp |
| Shape | Round |
