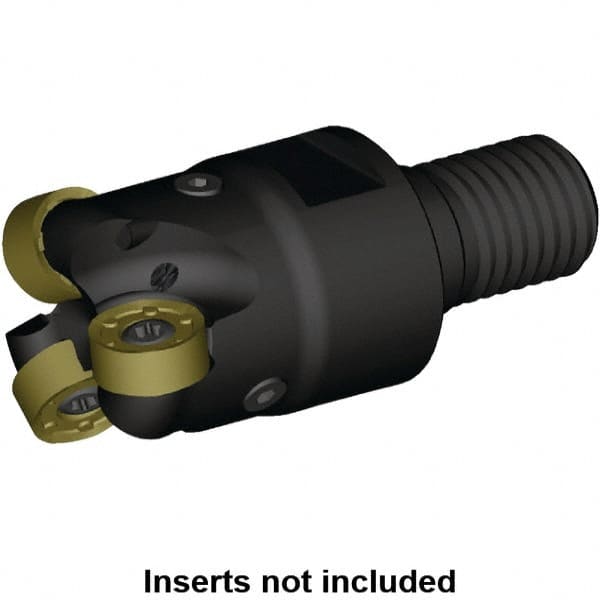

Kennametal - 1-1/2" Cutting Diam, Modular Connection Indexable Copy End Mill - 4 Inserts, RN.J 1204M0.. Insert, KDR Toolholder, Through Coolant
Item #: 69243012
Brand: Kennametal
Model #: 4178116
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1170 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Cutter Inserts | 4 |
| Insert Style | RN.J 1204M0.. |
| Toolholder Style | KDR |
| Series | Rodeka |
| Overall Length (Decimal Inch) | 1.5000 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 1.5000 |
| Maximum RPM | 35890 |
| Minimum Cutting Diameter (Decimal Inch) | 1.0280 |
| Modular Connection Size | M16 |
