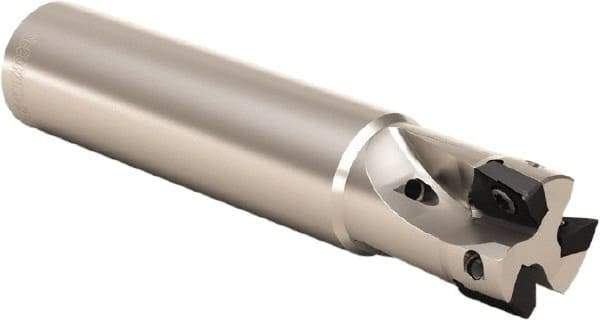

Seco - 12mm Cut Diam, 5mm Max Depth of Cut, 12mm Shank Diam, 60mm OAL, Indexable Square Shoulder End Mill - XO.. 0602 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series Nano Turbo
Item #: 69236644
Brand: Seco
Model #: 53242
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Overall Length/Projection (mm) | 60.00 |
| Overall Length/Projection (Decimal Inch) | 2.3622 |
| Lead Angle | 90 |
| Series | Nano Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (mm) | 17.00 |
| Head Length (Decimal Inch) | 0.6693 |
| Weldon Flat | No |
| Insert Compatibility | XO.. 0602 |
| Shank Length (Decimal Inch) | 1.6535 |
| Shank Length (mm) | 42.00 |
| Maximum RPM | 54400 |
