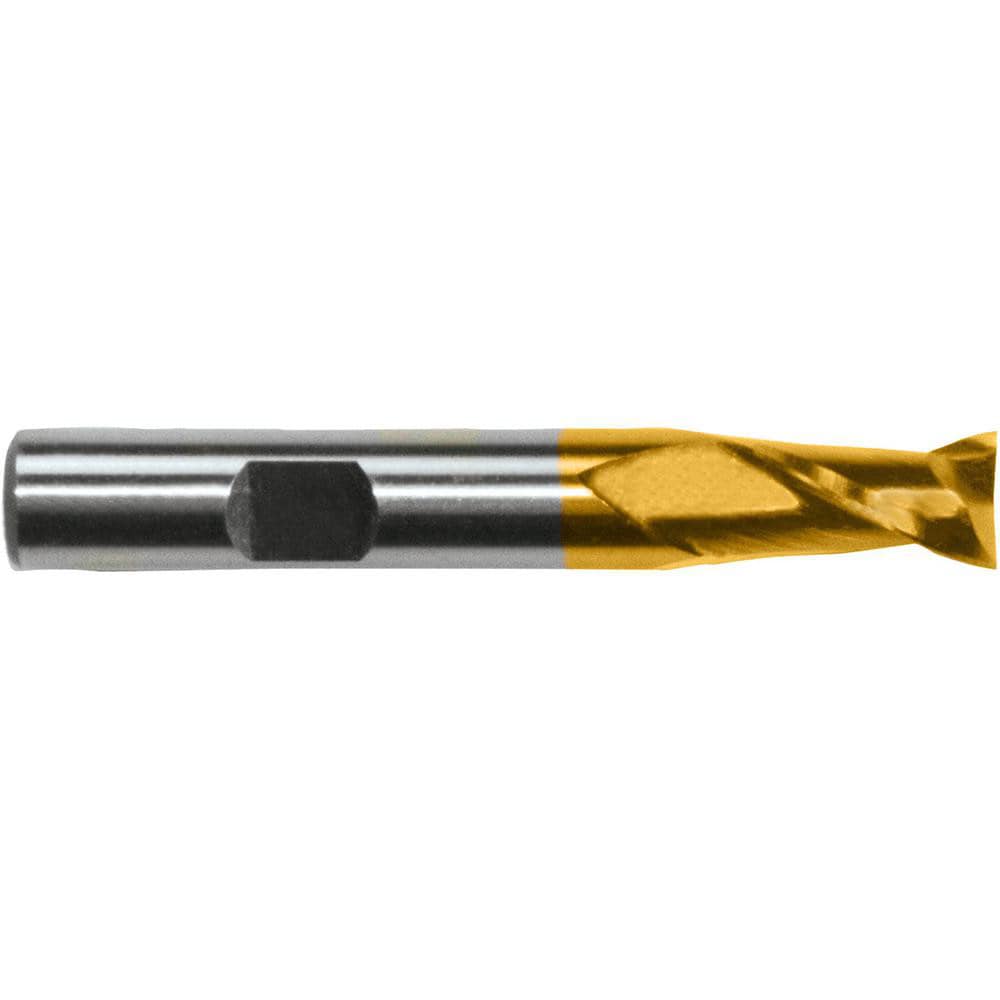

Square End Mill: 1-1/4" Dia, 1-5/8" LOC, 2 Flute, Cobalt
Item #: 66553942
Brand: Cleveland
Model #: C75173
Product Specifications
| Mill Diameter (mm) | 31.75 |
| Mill Diameter (Decimal Inch) | 1.2500 |
| Mill Diameter (Inch) | 1-1/4 |
| Number Of Flutes | 2 |
| End Mill Material | Cobalt |
| Length of Cut (Decimal Inch) | 1.6250 |
| Length of Cut (Inch) | 1-5/8 |
| Length of Cut (mm) | 41.27 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 98.42 |
| Overall Length (Decimal Inch) | 3.8750 |
| Overall Length (Inch) | 3-7/8 |
| Single Or Double End | Single |
| Coating/Finish Family | TiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Coating/Finish | TiN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Weldon Flat |
| Material Grade | M42 |
| Length Type | Stub |
| Series | HGC-2-TN |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 31.75 |
| Mill Diameter (Decimal Inch) | 1.2500 |
| Mill Diameter (Inch) | 1-1/4 |
| Number Of Flutes | 2 |
| End Mill Material | Cobalt |
| Length of Cut (Decimal Inch) | 1.6250 |
| Length of Cut (Inch) | 1-5/8 |
| Length of Cut (mm) | 41.27 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 98.42 |
| Overall Length (Decimal Inch) | 3.8750 |
| Overall Length (Inch) | 3-7/8 |
| Single Or Double End | Single |
| Coating/Finish Family | TiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Coating/Finish | TiN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Weldon Flat |
| Material Grade | M42 |
| Length Type | Stub |
| Series | HGC-2-TN |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 66553942 |
| Mfr Part # | C75173 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
