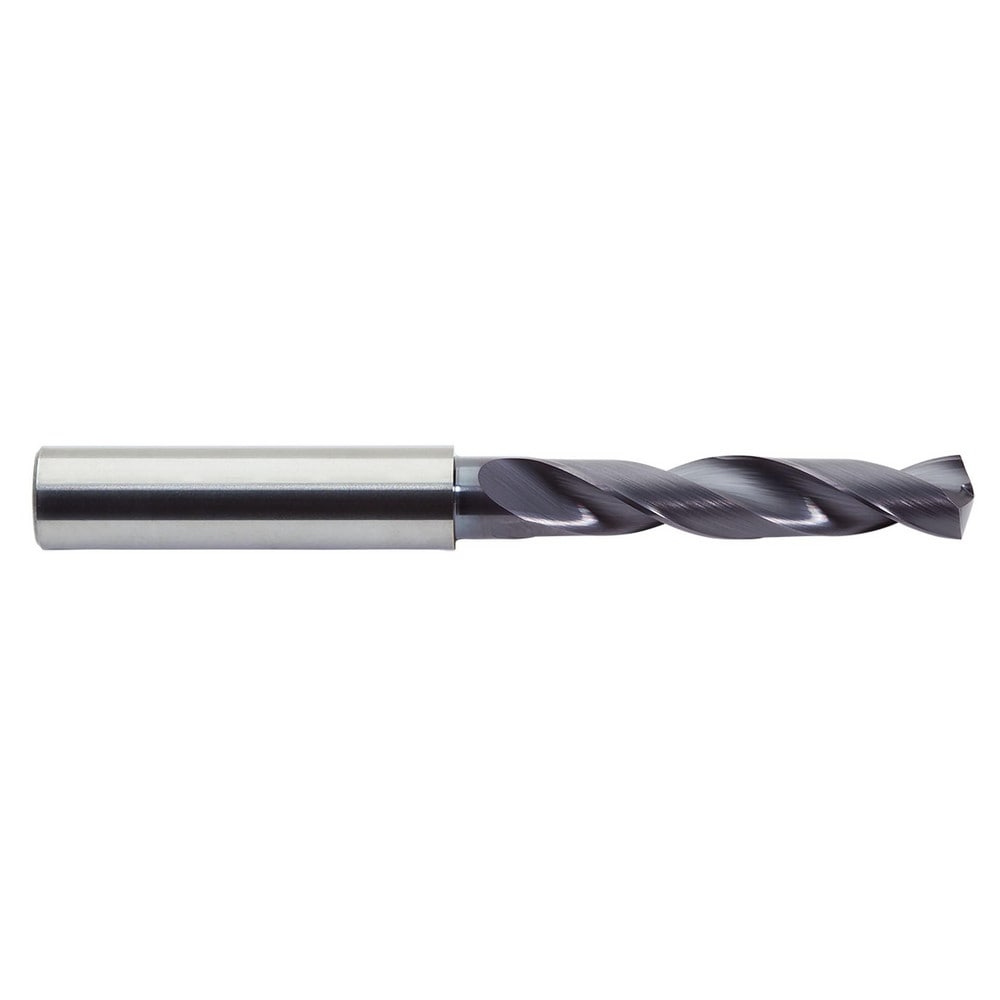

Screw Machine Length Drill Bit: 4.50 mm Dia, 142 deg Point, Solid Carbide
Item #: 66409087
Brand: M.A. Ford
Model #: 2XDSS1772A
Product Specifications
| Drill Bit Size (mm) | 4.50 |
| Drill Bit Size (Decimal Inch) | 0.1772 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN |
| Number Of Flutes | 2 |
| Spiral Type | Fast |
| Flute Type | Fast Spiral |
| Drill Point Angle | 142 |
| Coolant Through | No |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1968 |
| Overall Length (mm) | 63.00 |
| Overall Length (Decimal Inch) | 2.4803 |
| Shank Diameter (mm) | 5.00 |
| Series | 2XDSS |
| Proprietary Coating/Finish | ALtima |
| Number of Margins | 1 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (mm) | 21.00 |
| Shank Length (Decimal Inch) | 1.4567 |
| Shank Length (mm) | 37.00 |
| Drill Point Length (mm) | 0.70 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.012 mm |
| Flute Length (Decimal Inch) | 1.0236 |
| Flute Length (mm) | 26.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Drill Bit Size Range (mm) | 3.50 - 5.00 |
| UNSPSC Code | 23241635 |
| Drill Bit Size (mm) | 4.50 |
| Drill Bit Size (Decimal Inch) | 0.1772 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN |
| Number Of Flutes | 2 |
| Spiral Type | Fast |
| Flute Type | Fast Spiral |
| Drill Point Angle | 142 |
| Coolant Through | No |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1968 |
| Overall Length (mm) | 63.00 |
| Overall Length (Decimal Inch) | 2.4803 |
| Shank Diameter (mm) | 5.00 |
| Series | 2XDSS |
| Proprietary Coating/Finish | ALtima |
| Number of Margins | 1 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (mm) | 21.00 |
| Shank Length (Decimal Inch) | 1.4567 |
| Shank Length (mm) | 37.00 |
| Drill Point Length (mm) | 0.70 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.012 mm |
| Flute Length (Decimal Inch) | 1.0236 |
| Flute Length (mm) | 26.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Drill Bit Size Range (mm) | 3.50 - 5.00 |
| UNSPSC Code | 23241635 |
| MSC Part # | 66409087 |
| Mfr Part # | 2XDSS1772A |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
