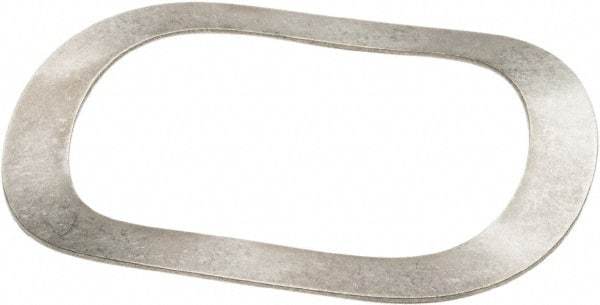

Associated Spring Raymond - 106.88mm ID x 137.36mm OD, Grade 1074 High Carbon Steel Triple Wave Washer - 1.35mm Thick, 9.86mm Overall Height, 5.11mm Deflection, 162 Lb at Deflection
Item #: 69159648
Brand: Associated Spring Raymond
Model #: W5408053
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
High carbon steel (HCS) is harder than plain carbon steel and has a high tensile strength. It is commonly used on wood, ferrous and non-ferrous metals.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| System of Measurement | Inch |
| Inside Diameter (mm) | 106.88 |
| Inside Diameter (Decimal Inch) | 4.208 |
| Outside Diameter (mm) | 137.36 |
| Outside Diameter (Decimal Inch) | 5.408 |
| Material | High Carbon Steel |
| Material Grade | 1074 |
| Overall Height (Decimal Inch) | 0.388 |
| Overall Height (mm) | 9.86 |
| Thickness (Decimal Inch) | 0.053 |
| Thickness (mm) | 1.35 |
| Deflection (Decimal Inch) | 0.2010 |
| Load at Deflection (Lb.) | 162.00 |
| Deflection (mm) | 5.11 |
| Load at Deflection (N) | 721 |
