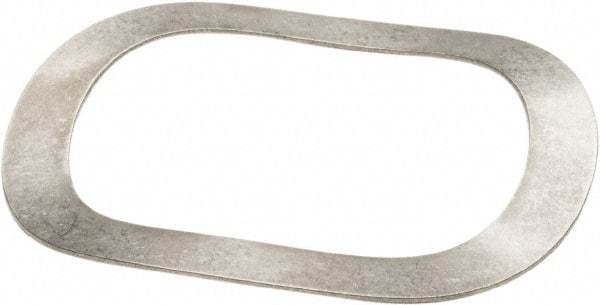

Associated Spring Raymond - 69.6mm ID x 89.38mm OD, Grade 1074 High Carbon Steel Triple Wave Washer - 0.97mm Thick, 5.94mm Overall Height, 3mm Deflection, 82 Lb at Deflection
Item #: 69159606
Brand: Associated Spring Raymond
Model #: W3519038
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
High carbon steel (HCS) is harder than plain carbon steel and has a high tensile strength. It is commonly used on wood, ferrous and non-ferrous metals.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| System of Measurement | Inch |
| Inside Diameter (mm) | 69.60 |
| Inside Diameter (Decimal Inch) | 2.740 |
| Outside Diameter (mm) | 89.38 |
| Outside Diameter (Decimal Inch) | 3.519 |
| Material | High Carbon Steel |
| Material Grade | 1074 |
| Overall Height (Decimal Inch) | 0.234 |
| Overall Height (mm) | 5.94 |
| Thickness (Decimal Inch) | 0.038 |
| Thickness (mm) | 0.97 |
| Deflection (Decimal Inch) | 0.1180 |
| Load at Deflection (Lb.) | 82.00 |
| Deflection (mm) | 3 |
| Load at Deflection (N) | 365 |
