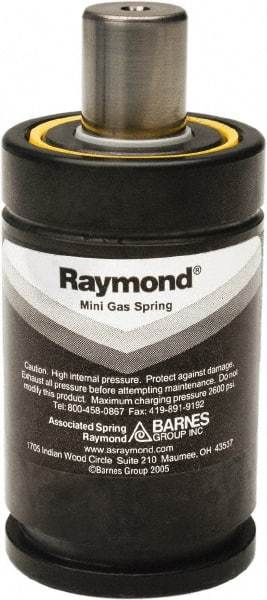

Associated Spring Raymond - M8 Int Rod, G1/8 Fill Port, M8 Mt Hole, 36mm Rod Diam, 75.2mm Diam, 38.1mm Max Stroke, Black Nitrogen Gas Spring Cylinder - 148.1mm Body Length, 186.2mm OAL, 5,170 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69158236
Brand: Associated Spring Raymond
Model #: TU 1500-038
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M8 |
| Internal Rod Thread (mm) | M8 |
| Fill Port | G1/8 |
| Color | Black |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 75.20 |
| Body Length (mm) | 148.10 |
| Body Length (Decimal Inch) | 5.8307 |
| Diameter (Decimal Inch) | 2.9606 |
| Spring Force Initial (N) | 15013 |
| Spring Force Initial (lbf) | 3375 |
| Spring Force Full Stroke (N) | 22997 |
| Spring Force Full Stroke (lbf) | 5170 |
| Rod Diameter (mm) | 36 |
| Rod Diameter (Decimal Inch) | 1.4173 |
| Overall Length (mm) | 186.20 |
| Overall Length (Decimal Inch) | 7.3307 |
| Maximum Stroke (mm) | 38.10 |
| Maximum Stroke (Decimal Inch) | 1-1/2 |
