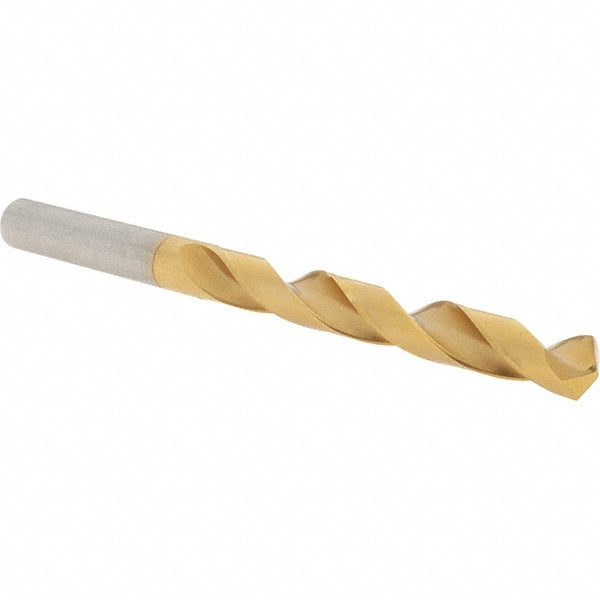

Jobber Drill: 23/64" Dia, 118 deg Point, High Speed Steel
Item #: 75770412
Brand: Guhring
Model #: 9006510091300
Product Specifications
| Drill Bit Size (Inch) | 23/64 |
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Shank Diameter (Decimal Inch) | 0.4063 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Spiral Type | Regular |
| Flute Length (mm) | 81.00 |
| Flute Length (Decimal Inch) | 3.1890 |
| Series | 651 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 23/64 |
| Shank Diameter (mm) | 9.13 |
| Maximum Drilling Depth (Decimal Inch) | 1.6250 |
| Maximum Drilling Depth (mm) | 81.00 |
| Shank Length (mm) | 44 |
| Shank Length (Decimal Inch) | 1.7323 |
| Drill Bit Diameter Tolerance | +0.000 to -0.022 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
| Material Grade | M2 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Country of Origin | Germany |
