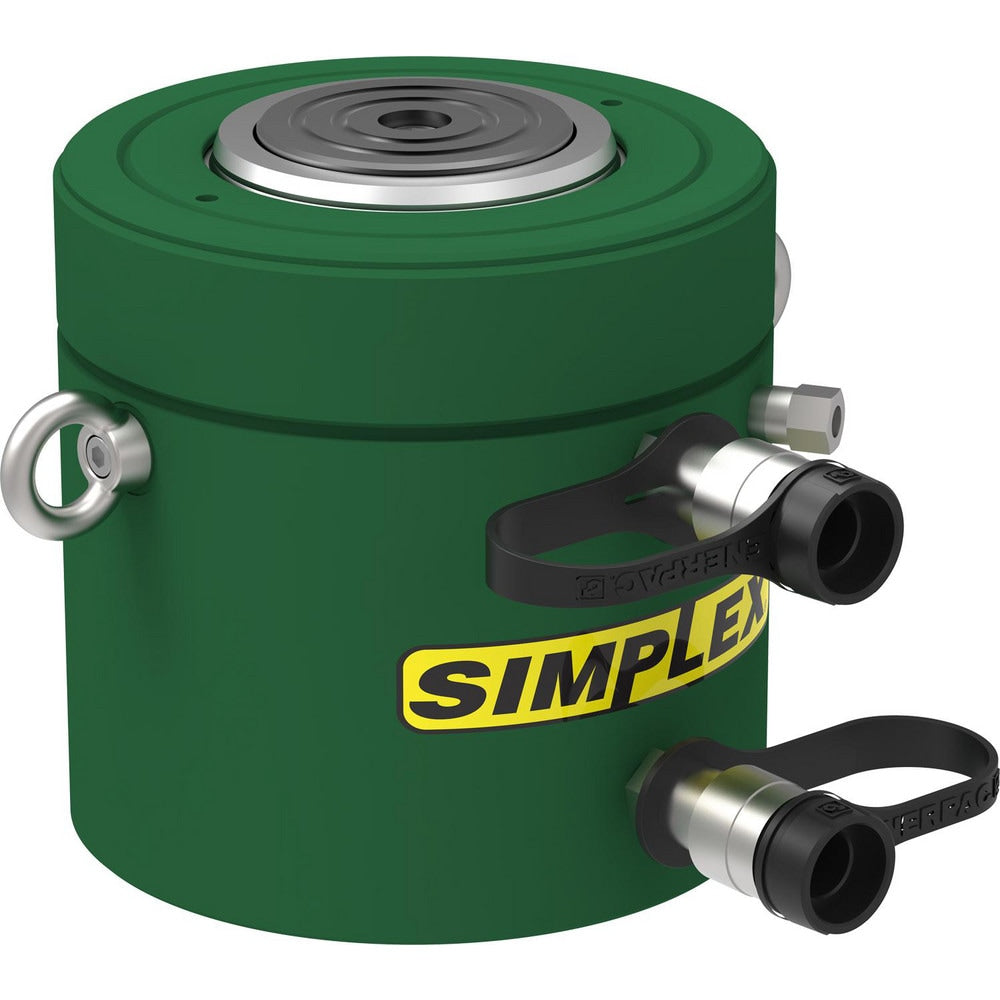

Portable Hydraulic Cylinders; Actuation: Double Acting; Load Capacity: 158; Stroke Length: 1.97; Oil Capacity: 61.35; Cylinder Bore Diameter (Decimal Inch): 6.30; Cylinder Effective Area: 1; Lowered Height: 8.39
Item #: 72641558
Brand: Enerpac
Model #: RCR1502
Product Specifications
| Actuation | Double Acting |
| Load Capacity | 158 |
| Stroke Length | 1.97 |
| Oil Capacity | 61.35 |
| Cylinder Bore Diameter (Decimal Inch) | 6.30 |
| Cylinder Effective Area | 1 |
| Lowered Height | 8.39 |
| Retracted Length | 8 |
| Extended Length | 10.35 |
| Cushion Type | No Cushion |
| Bore Diameter | 6.3000 |
| Outside Diameter | 8.27 in |
| Maximum Working Pressure | 10150.000 |
| Body Material | Steel |
| Saddle Diameter | 3.7 |
| Series | RCR |
| Maximum Height (Inch) | 10.3500 |
| UNSPSC Code | 27121602 |
| Actuation | Double Acting |
| Load Capacity | 158 |
| Stroke Length | 1.97 |
| Oil Capacity | 61.35 |
| Cylinder Bore Diameter (Decimal Inch) | 6.30 |
| Cylinder Effective Area | 1 |
| Lowered Height | 8.39 |
| Retracted Length | 8 |
| Extended Length | 10.35 |
| Cushion Type | No Cushion |
| Bore Diameter | 6.3000 |
| Outside Diameter | 8.27 in |
| Maximum Working Pressure | 10150.000 |
| Body Material | Steel |
| Saddle Diameter | 3.7 |
| Series | RCR |
| Maximum Height (Inch) | 10.3500 |
| UNSPSC Code | 27121602 |
| MSC Part # | 72641558 |
| Mfr Part # | RCR1502 |
| Country of Origin Country of Origin is subject to change | Spain |
