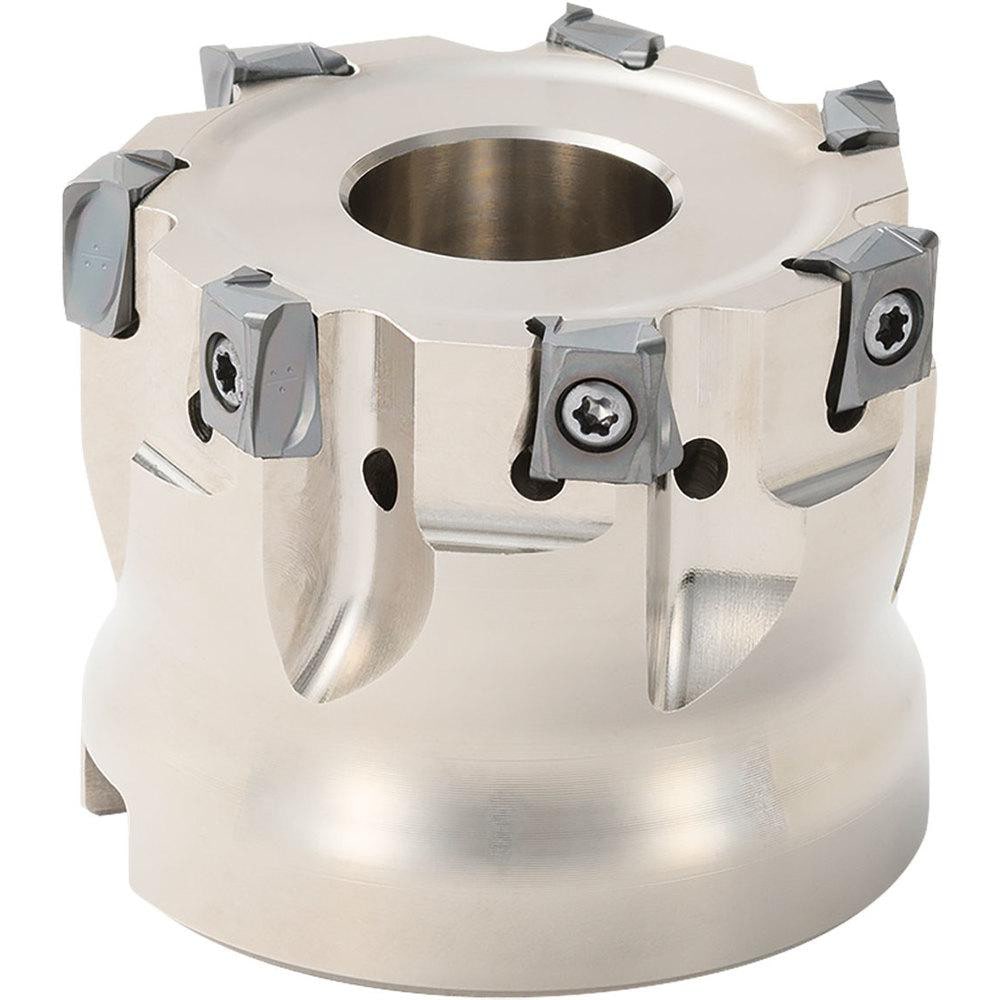

Indexable Square-Shoulder Face Mill: MA902500R09T9C, 0.7500" Arbor Hole Dia, 0.3150" Max Cutting Depth
Item #: 68889880
Brand: Kyocera
Model #: THN08783
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Minimum Cutting Diameter (mm) | 63.50 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Cutting Diameter (mm) | 63.50 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | 0904 |
| Cutter Style | Facing; Plunging; Ramping; Shouldering; Slotting; Helical Milling |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Axial); Negative (Radial) |
| Series | MA90 |
| Keyway Width (mm) | 7.94 |
| Keyway Width (Decimal Inch) | 0.3126 |
| Hub Diameter (mm) | 19.050 |
| Hub Diameter (Decimal Inch) | 0.7500 |
| Maximum RPM | 15100.000 |
| Tool Application | Facing; Helical Interpolation; Plunging; Ramping; Shouldering; Slotting |
| Tool Performance | High Performance |
| Standards | GR99 |
| Counterbore Diameter (Decimal Inch) | 0.6693 |
| Complete Insert Compatibility | LOGU0904?-GH; LOGU0904?-SM; LOGU0904?-GM |
| UNSPSC Code | 23242106 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MA902500R09T9C |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 9 |
| Number Of Flutes | 9 |
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Minimum Cutting Diameter (mm) | 63.50 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Cutting Diameter (mm) | 63.50 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | 0904 |
| Cutter Style | Facing; Plunging; Ramping; Shouldering; Slotting; Helical Milling |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Axial); Negative (Radial) |
| Series | MA90 |
| Keyway Width (mm) | 7.94 |
| Keyway Width (Decimal Inch) | 0.3126 |
| Hub Diameter (mm) | 19.050 |
| Hub Diameter (Decimal Inch) | 0.7500 |
| Maximum RPM | 15100.000 |
| Tool Application | Facing; Helical Interpolation; Plunging; Ramping; Shouldering; Slotting |
| Tool Performance | High Performance |
| Standards | GR99 |
| Counterbore Diameter (Decimal Inch) | 0.6693 |
| Complete Insert Compatibility | LOGU0904?-GH; LOGU0904?-SM; LOGU0904?-GM |
| UNSPSC Code | 23242106 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MA902500R09T9C |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 9 |
| Number Of Flutes | 9 |
| MSC Part # | 68889880 |
| Mfr Part # | THN08783 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
