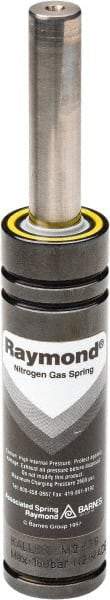

Associated Spring Raymond - M6 Fill Port, M6 Mt Hole, 12mm Rod Diam, 24.9mm Diam, 63.5mm Max Stroke, Red Nitrogen Gas Spring Cylinder - 108.5mm Body Length, 172mm OAL, 510 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 69147866
Brand: Associated Spring Raymond
Model #: M2-063-RE
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M6 |
| Fill Port | M6 |
| Color | Red |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 24.90 |
| Body Length (mm) | 108-1/2 |
| Body Length (Decimal Inch) | 4.2717 |
| Diameter (Decimal Inch) | 0.9803 |
| Spring Force Initial (N) | 1512 |
| Spring Force Initial (lbf) | 340 |
| Spring Force Full Stroke (N) | 2269 |
| Spring Force Full Stroke (lbf) | 510 |
| Rod Diameter (mm) | 12 |
| Rod Diameter (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 172 |
| Overall Length (Decimal Inch) | 6.7717 |
| Maximum Stroke (mm) | 63-1/2 |
| Maximum Stroke (Decimal Inch) | 2-1/2 |
