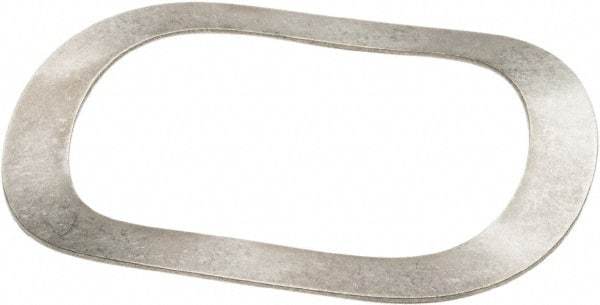

Associated Spring Raymond - 98.81mm ID x 126.92mm OD, Grade 1074 High Carbon Steel Triple Wave Washer - 1.27mm Thick, 9.02mm Overall Height, 4.65mm Deflection, 145 Lb at Deflection
Item #: 69130045
Brand: Associated Spring Raymond
Model #: W4997050
Exact Tooling IR#: 04
Features and Benefits
Triple wave washers have a greater load-bearing capacity than single wave washers but have a smaller diameter.
High carbon steel (HCS) is harder than plain carbon steel and has a high tensile strength. It is commonly used on wood, ferrous and non-ferrous metals.
| Product Specifications | |
|---|---|
| Type | Triple Wave Washer |
| System of Measurement | Inch |
| Inside Diameter (mm) | 98.81 |
| Inside Diameter (Decimal Inch) | 3.890 |
| Outside Diameter (mm) | 126.92 |
| Outside Diameter (Decimal Inch) | 4.997 |
| Material | High Carbon Steel |
| Material Grade | 1074 |
| Overall Height (Decimal Inch) | 0.355 |
| Overall Height (mm) | 9.02 |
| Thickness (Decimal Inch) | 0.050 |
| Thickness (mm) | 1.27 |
| Deflection (Decimal Inch) | 0.1830 |
| Load at Deflection (Lb.) | 145.00 |
| Deflection (mm) | 4.65 |
| Load at Deflection (N) | 645 |
