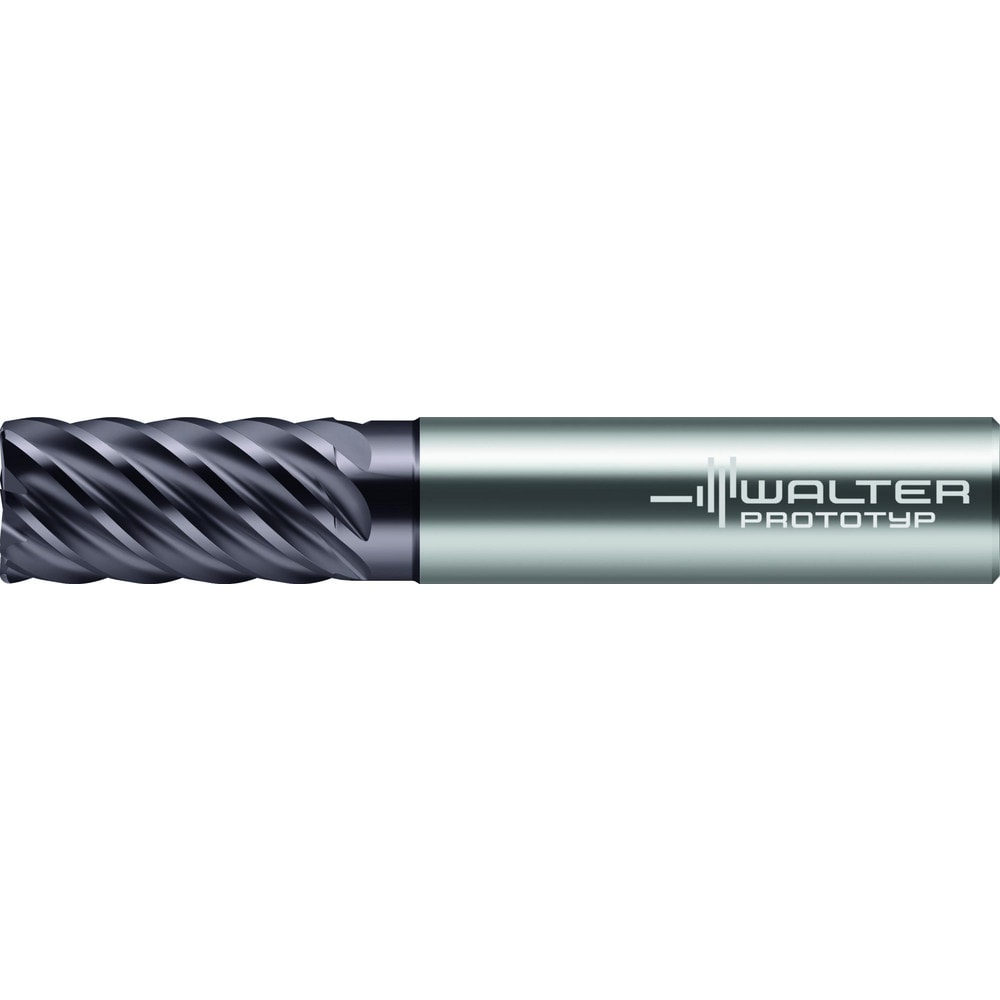

Corner Radius End Mill: 20 mm Dia, 36.00 mm LOC, 0.50 mm Radius, 7 Flute, Solid Carbide
Item #: 75392829
Brand: Walter-Prototyp
Model #: 8415184
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Number Of Flutes | 7 |
| Length of Cut (mm) | 36.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | TiAlN/THL |
| Centercutting | No |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.50 |
| Overall Length (mm) | 100.00 |
| Coolant Through | No |
| End Type | Corner Radius |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 20.00 |
| Reach Length (mm) | 57.00 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Series | MA230-A-7-R-C |
| Proprietary Coating Designation | WJ30TF |
| Manufacturers Catalog Number | MA230-20.0A7D050C-WJ30TF |
| Country of Origin | UNITED STATES |
