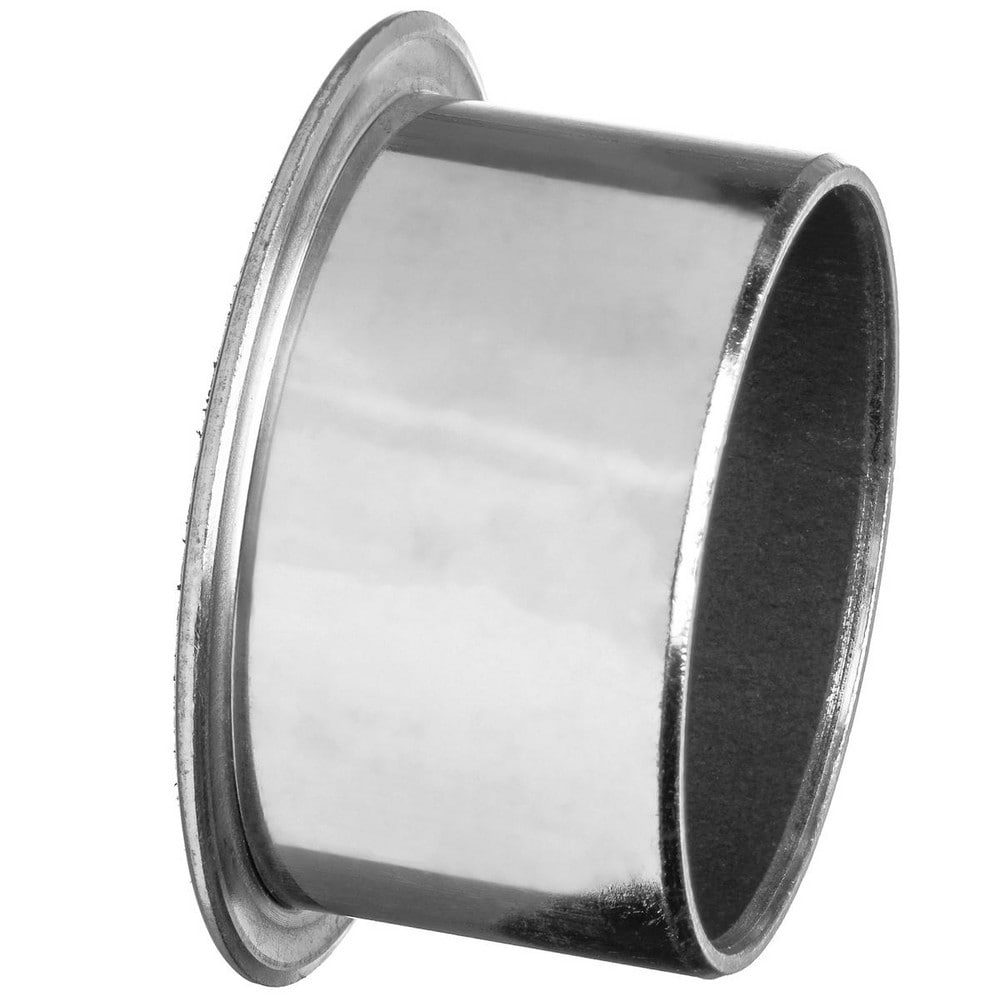

Sleeve Bearings; Bearing Type: Flanged; Outside Diameter (Inch): 23/32; Outside Diameter (Decimal Inch - 4 Decimals): 0.7188; Inside Diameter (Inch): 5/8; Inside Diameter (Decimal Inch): 0.6250
Item #: 76811298
Brand: USA Industrials
Model #: ZUSAB-PB-1075
Product Specifications
| Bearing Type | Flanged |
| Outside Diameter (Inch) | 23/32 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.7188 |
| Inside Diameter (Inch) | 5/8 |
| Inside Diameter (Decimal Inch) | 0.6250 |
| Flange Outside Diameter (Decimal Inch) | 0.9375 |
| Flange Outside Diamete (mm) | 23.81 |
| Flange Outside Diameter (Inch) | 15/16 |
| Flange Thickness (Decimal Inch) | 0.0468 |
| Flange Thickness (Inch) | 3/64 |
| Material | Steel |
| Overall Length (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 0.7500 |
| Static Load Capacity | 90837.18 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 0.7190 |
| Housing Bore Limits Mininum | 0.7180 |
| Flange Thickness (mm) | 1.19 |
| Inside Diameter (mm) | 15.8800 |
| Overall Length (mm) | 19.05 |
| UNSPSC Code | 31171501 |
| Country of Origin | United Kingdom |
